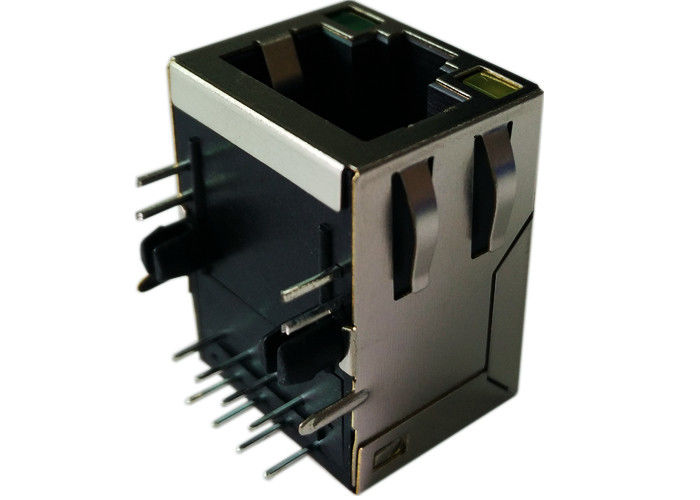

Modular Rj45 Connectors JD1-0004NL 10/100 base-T Integrated Magnetics

Product Details

Place of Origin: China

Brand Name: LINK-PP

Certification: UL,ROHS,Reach,ISO

Model Number: JD1-0004NL

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/25K

Price: $0.05-$1.28

Packaging Details: 50pcs/tray,1200pcs/carton

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 4200K-PCS/Month

Get Best Price
Highlight:

rj-45 ethernet jack

,

modular jacks rj45

Designe PN#:
JD1-0004NL
Made In China:
SM-LPJ1XXXNL
Category:
Rj45 Tab-up Connector
Interface:
10/100Base-T
LED:
Flexible Designed
Samples:
Available
Designe PN#:
JD1-0004NL
Made In China:
SM-LPJ1XXXNL
Category:
Rj45 Tab-up Connector
Interface:
10/100Base-T
LED:
Flexible Designed
Samples:
Available
Modular Rj45 Connectors JD1-0004NL 10/100 base-T Integrated Magnetics

Modular Rj45 Connectors JD1-0004NL 10/100 base-T Integrated Magnetics



Pulse Jack JD1-0004NL
Trader Part Number
JD1-0004NL
Price Break
Unit Price
Extended Price
1-5
A
-
10-50
B
-
100-500
C-1
-
1,000-2,500
Supportive
Competitive
5,000
Dynamic
Dynamic
10,000
Dynamic
Dynamic
50,000
 Negotiable
Negotiable
100,000
 Negotiable
Negotiable
500,000
 Negotiable
Negotiable
Made in China
SM-LPJ1XXXNL
Manufacturer
LINK-PP China
Description
Gigabyte Mag45 Connector
Documents Available
PDF/3D/Step/IGS/Price/Cross
Quantity Available
200,000 PCS or 4 weeks



JD1-0004NL ELECTRICAL SPECFICATIONS @
1.Turns Ratio(± 2%):
  TX=1CT:1CT      RX=1CT:1CT
2.OCL: 350uH Min
  @100KHz,100mV,8mA bias current
3.Insertion Loss:
  1-65MHz:-1.0dB Max
4.Return Loss(dB Min @100Ω± 15Ω):
  1-10MHz:-20      30MHz:-16
  60-80MHz:-12
5.Crosstalk(dB Min):
  1-10MHz:-40      30-60MHz:-35
  60-100MHz:-30
6.Common Mode Rejection(dB Min):
  1-50MHz:-30      50-130MHz:-20
7.Isolation Voltage: 1500Vrms Min
