Product Details
Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: ISO9001,SGS,UL,CE,REACH163
Model Number: BS-RB10202
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.09-$1.85
Packaging Details: Tray & Carton&Reel
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3000000/Month
Designe PN#: |
BS-RB10202 |
Made In China: |
SM-LPJ0085AHNL |
Mounting Type: |
90° Angle (Right) |
Interface: |
10/100 Base-T,Power Over Ethernet (PoE) |
LED: |
Green - Yellow |
Samples: |
Supportive |
Designe PN#: |
BS-RB10202 |
Made In China: |
SM-LPJ0085AHNL |
Mounting Type: |
90° Angle (Right) |
Interface: |
10/100 Base-T,Power Over Ethernet (PoE) |
LED: |
Green - Yellow |
Samples: |
Supportive |

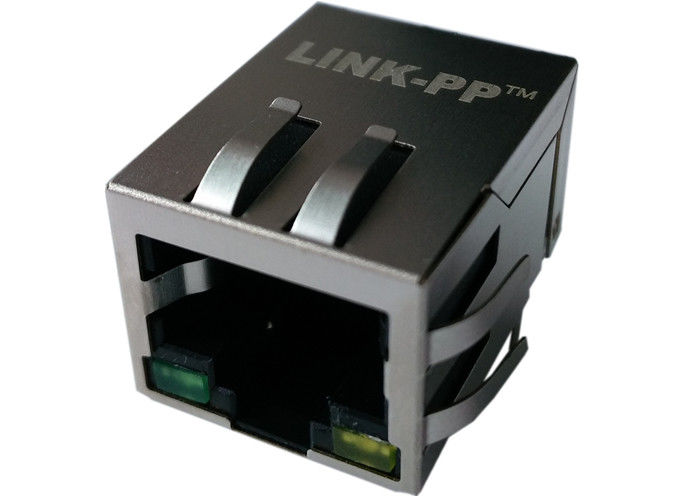

BS-RB10202
|
||||||||||||||||||||||||||||||||
Trader Part Number
|
BS-RB10202
|
|
||||||||||||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Made in China
|
SM-LPJ0085AHNL
|
|||||||||||||||||||||||||||||||
Manufacturer
|
LINK-PP China
|
|||||||||||||||||||||||||||||||
Description
|
Rj45 POE Jack | |||||||||||||||||||||||||||||||
Documents Available
|
PDF/3D/Step/IGS/Price/Cross
|
|||||||||||||||||||||||||||||||
Quantity Available
|
200,000 PCS or 3 weeks
|
BS-RB10202 ELECTRICAL SPECFICATIONS @
1.Turns Ratio(± 2%):
TX=1CT:1CT RX=1CT:1CT
2.OCL: 350uH Min
@100KHz,100mV,8mA bias current
3.Insertion Loss:
1-65MHz:-1.0dB Max
4.Return Loss(dB Min @100Ω± 15Ω):
1-10MHz:-20 30MHz:-16
60-80MHz:-12
5.Crosstalk(dB Min):
1-10MHz:-40 30-60MHz:-35
60-100MHz:-30
6.Common Mode Rejection(dB Min):
1-50MHz:-30 50-130MHz:-20
7.Isolation Voltage: 1500Vrms Min
