Home ProductsLow-Profile RJ45 Jack

Low-Profile RJ45 Jack RJMG2012228A0ER RJMG Gigabit Ultra Low Prrofile w/ LED

Good quality Magnetic RJ45 Jack for sales
Good quality Magnetic RJ45 Jack for sales
WOW , 100% Tested ,Zero Defective

—— TI

LINK-PP is Our Best Supplier in China

—— Intel

Thanks a Lot For Supplying Excellent RJ45 And Transformer ,LINK-PP Deserve the Consideration Worldwidely

—— Cisco

LINK-PP is Flex type A Vendor For All RJ45 Connector and Transformer

—— Flextronics

I'm Online Chat Now

Low-Profile RJ45 Jack RJMG2012228A0ER RJMG Gigabit Ultra Low Prrofile w/ LED

China Low-Profile RJ45 Jack RJMG2012228A0ER RJMG Gigabit Ultra Low Prrofile w/ LED supplier

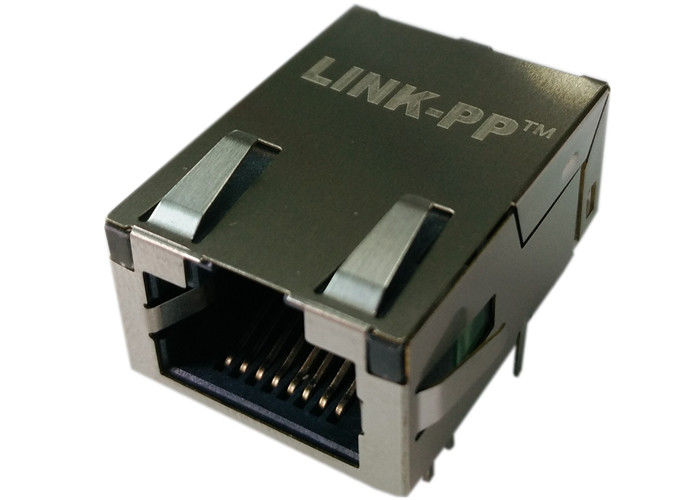

Large Image :  Low-Profile RJ45 Jack RJMG2012228A0ER RJMG Gigabit Ultra Low Prrofile w/ LED

Product Details:

Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO 9001,ISO 14001,UL,SGS,REACH168
Model Number: RJMG2012228A0ER

Payment & Shipping Terms:

Minimum Order Quantity: 200/500/1200
Price: Supportive
Packaging Details: 60pcs/tray,or Reel Package
Delivery Time: Stock or 4-5 weeks
Payment Terms: TT,Paypa,West Union
Supply Ability: 2800K-PCS/Month
Contact Now
Detailed Product Description
Designe PN#: RJMG2012228A0ER Made In China: SM-LPJK7436A98NL
Orientation: 90° Angle (Right) Interface: 10/100/1000 Base-T, AutoMDIX
LED: Flexible Samples: Supportive

Low-Profile RJ45 Jack RJMG2012228A0ER RJMG Gigabit Ultra Low Prrofile w/ LED



RJMG2012228A0ER
Trader Part Number
RJMG2012228A0ER
Price Break
Unit Price
Extended Price
1-5
A
-
10-50
B
-
100-500
C-1
-
1,000-2,500
Supportive
Competitive
5,000
Dynamic
Dynamic
10,000
Dynamic
Dynamic
50,000
 Negotiable
Negotiable
100,000
 Negotiable
Negotiable
500,000
 Negotiable
Negotiable
Made in China
SM-LPJK7436A98NL
Manufacturer
LINK-PP China
Description
Rj45 Gigabyte Ethernet Jack
Documents Available
PDF/3D/Step/IGS/Price/Cross
Quantity Available
200,000 PCS or 4 weeks



RJMG2012228A0ER ELECTRICAL SPECFICATIONS: @25℃
1.Turn Ratio(%%P2%):
  1CT∶1CT
2.Inductance OCL: 350uH MIN
  @100KHz/0.1V,8mA DC Bias
3.Insertion Loss:
  -1.0dB MAX @ 1.0~65MHz
4.Return Loss:
  -20dB MIN @ 1~10MHz
  -16dB MIN @ 10~30MHz
  -12dB MIN @ 30~60MHz
  -10dB MIN @ 60~100MHz
5.Cross talk:
  -40dB MIN @ 1~30MHz
  -35dB MIN @ 30~60MHz
  -30dB MIN @ 60~100MHz
6.Common Mode Rejection:
  -30dB MIN @ 1~50MHz
  -20dB MIN @ 50~150MHz
7.Hipot Test: 1500Vrms MIN
