Home ProductsSMT RJ45 Connector

SMT RJ45 RJMG168447101GR Lan 10/100, Single Port Leds Bi Gr/yl

Good quality Magnetic RJ45 Jack for sales
Good quality Magnetic RJ45 Jack for sales
WOW , 100% Tested ,Zero Defective

—— TI

LINK-PP is Our Best Supplier in China

—— Intel

Thanks a Lot For Supplying Excellent RJ45 And Transformer ,LINK-PP Deserve the Consideration Worldwidely

—— Cisco

LINK-PP is Flex type A Vendor For All RJ45 Connector and Transformer

—— Flextronics

I'm Online Chat Now

SMT RJ45 RJMG168447101GR Lan 10/100, Single Port Leds Bi Gr/yl

China SMT RJ45 RJMG168447101GR Lan 10/100, Single Port Leds Bi Gr/yl supplier

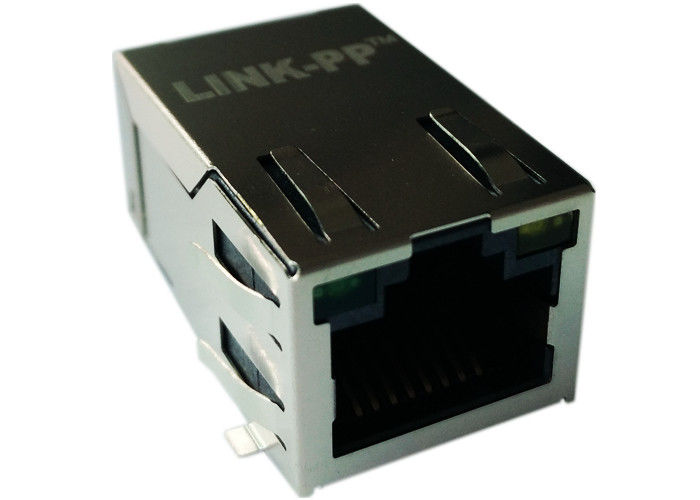

Large Image :  SMT RJ45 RJMG168447101GR Lan 10/100, Single Port Leds Bi Gr/yl

Product Details:

Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: ISO9001,SGS,UL,CE,REACH163
Model Number: RJMG168447101GR

Payment & Shipping Terms:

Minimum Order Quantity: 200 PCS
Price: Supportive
Packaging Details: Tray & Carton&Reel
Delivery Time: Stock or 4 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 3000000/Month
Contact Now
Detailed Product Description
Designe PN#: RJMG168447101GR Made In China: SM-LPJ30XXXXNL
Orientation: 180° Angle Interface: 10/100BT AutoMDIX
LED: Flexible Samples: Supportive

SMT RJ45 RJMG168447101GR Lan 10/100, Single Port Leds Bi Gr/yl



RJMG168447101GR
Trader Part Number
RJMG168447101GR
Price Break
Unit Price
Extended Price
1-5
A
-
10-50
B
-
100-500
C-1
-
1,000-2,500
Supportive
Competitive
5,000
Dynamic
Dynamic
10,000
Dynamic
Dynamic
50,000
 Negotiable
Negotiable
100,000
 Negotiable
Negotiable
500,000
 Negotiable
Negotiable
Made in China
SM-LPJ30XXXXNL
Manufacturer
LINK-PP China
Description
Rj45 SMD Jack
Documents Available
PDF/3D/Step/IGS/Price/Cross
Quantity Available
200,000 PCS or 4 weeks



RJMG168447101GR ELECTRICAL SPECFICATIONS: @25℃
1.Turn Ratio(%%P2%):
  1CT∶1CT
2.Inductance OCL: 350uH MIN
  @100KHz/0.1V,8mA DC Bias
3.Insertion Loss:
  -1.0dB MAX @ 1.0~65MHz
4.Return Loss:
  -20dB MIN @ 1~10MHz
  -16dB MIN @ 10~30MHz
  -12dB MIN @ 30~60MHz
  -10dB MIN @ 60~100MHz
5.Cross talk:
  -40dB MIN @ 1~30MHz
  -35dB MIN @ 30~60MHz
  -30dB MIN @ 60~100MHz
6.Common Mode Rejection:
  -30dB MIN @ 1~50MHz
  -20dB MIN @ 50~150MHz
7.Hipot Test: 1500Vrms MIN
