Home > products > RJ45 Modular Jack > XFATM11E-CLxu1-4MS RJ45 Modular Jack 10/100Base-T Ethernet Connector

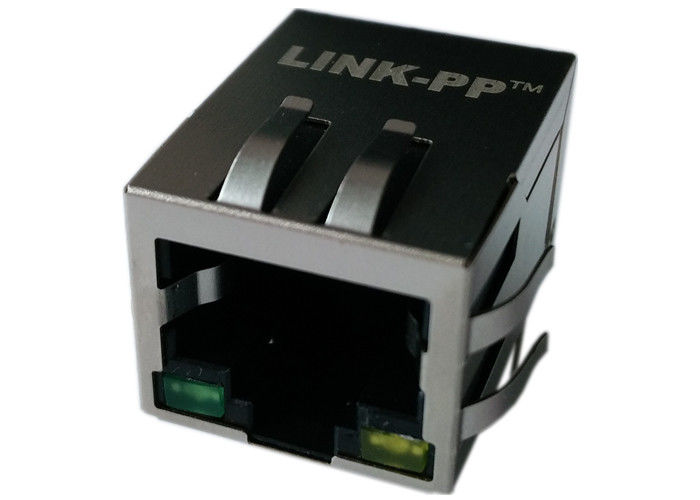

XFATM11E-CLxu1-4MS RJ45 Modular Jack 10/100Base-T Ethernet Connector

Product Details

Place of Origin: China

Brand Name: LINK-PP

Certification: UL,ROHS,Reach,ISO

Model Number: XFATM11E-CLxu1-4MS

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/25K

Price: $0.05-$1.28

Packaging Details: 50pcs/tray,1200pcs/carton

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 4200K-PCS/Month

Get Best Price
Highlight:

modular jacks rj45

,

industrial rj45 connector

Part Number:
XFATM11E-CLxu1-4MS
Samples:
Active&Available
Category:
RJ45 Modular Jack
Interface:
10/100 AutoMDIX
TURNS RATIO:
'1CT:1CT & 1CT:1CT'
Made In China:
SM-LPJ00XAXNL
Part Number:
XFATM11E-CLxu1-4MS
Samples:
Active&Available
Category:
RJ45 Modular Jack
Interface:
10/100 AutoMDIX
TURNS RATIO:
'1CT:1CT & 1CT:1CT'
Made In China:
SM-LPJ00XAXNL
XFATM11E-CLxu1-4MS RJ45 Modular Jack 10/100Base-T Ethernet Connector

XFATM11E-CLxu1-4MS RJ45 Modular Jack 10/100Base-T Ethernet Connector



XFATM11E-CLxu1-4MS
Trader Part Number
XFATM11E-CLxu1-4MS
Price Break
Unit Price
Extended Price
1-5
A
-
10-50
B
-
100-500
C-1
-
1,000-2,500
Supportive
Competitive
5,000
Dynamic
Dynamic
10,000
Dynamic
Dynamic
50,000
 Negotiable
Negotiable
100,000
 Negotiable
Negotiable
500,000
 Negotiable
Negotiable
Made in China
SM-LPJ00XAXNL
Manufacturer
LINK-PP China
Description
RJ45 Modular Jack
Documents Available
PDF/3D/Step/IGS/Price/Cross
Quantity Available
200,000 PCS or 3 weeks



XFATM11E-CLxu1-4MS ELECTRICAL SPECFICATIONS: @25℃
1.Turn Ratio(%%P2%):
  1CT∶1CT
2.Inductance OCL: 350uH MIN
  @100KHz/0.1V,8mA DC Bias
3.Insertion Loss:
  -1.0dB MAX @ 1.0~65MHz
4.Return Loss:
  -20dB MIN @ 1~10MHz
  -16dB MIN @ 10~30MHz
  -12dB MIN @ 30~60MHz
  -10dB MIN @ 60~100MHz
5.Cross talk:
  -40dB MIN @ 1~30MHz
  -35dB MIN @ 30~60MHz
  -30dB MIN @ 60~100MHz
6.Common Mode Rejection:
  -30dB MIN @ 1~50MHz
  -20dB MIN @ 50~150MHz
7.Hipot Test: 1500Vrms MIN
