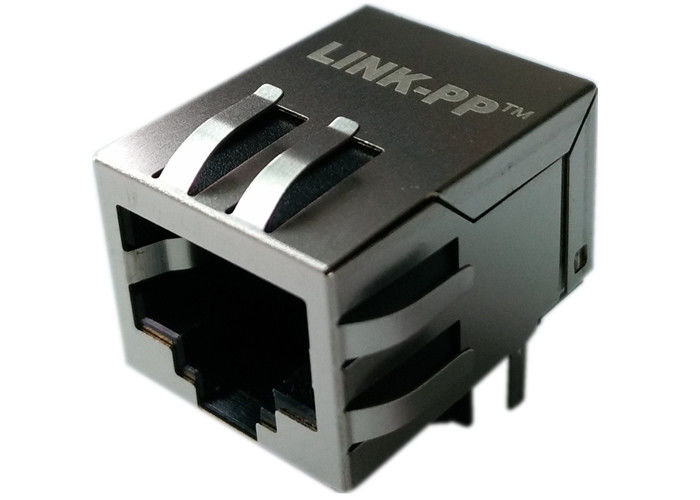

XFATM2T-COMBO1-4M Magnetics Rj45 Modular jack 10/100Base-T Shield Wo/LED

Name: XFATM2T-COMBO1-4M Magnetics Rj45 Modular jack 10/100Base-T Shield Wo/LED
Brand: LINK-PP
SKU: XFATM2T-COMBO1-4M
Rating: 4.6 (176 reviews)

Product Details

Place of Origin: China

Brand Name: LINK-PP

Certification: UL,ROHS,Reach,ISO

Model Number: XFATM2T-COMBO1-4M

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000

Price: Supportive

Packaging Details: 50pcs/tray,1200pcs/carton

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 4600K.PCS/Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                stacked rj45 connectors, rj45 magnetic jack


Part Number:	XFATM2T-COMBO1-4M	Samples:	Active&Available
Category:	Magnetic RJ45 Jack	Interface:	10/100BT AutoMDIX
TURNS RATIO:	1CT:1CT & 1CT:1CT	Made In China:	SM-LPJ10XXCNL

Part Number:	XFATM2T-COMBO1-4M
Samples:	Active&Available
Category:	Magnetic RJ45 Jack
Interface:	10/100BT AutoMDIX
TURNS RATIO:	1CT:1CT & 1CT:1CT
Made In China:	SM-LPJ10XXCNL

XFATM2T-COMBO1-4M Magnetics Rj45 Modular jack 10/100Base-T Shield Wo/LED

XFATM2T-COMBO1-4M

Trader Part Number

XFATM2T-COMBO1-4M

Price Break	Unit Price	Extended Price
1-5	A	-
10-50	B	-
100-500	C-1	-
1,000-2,500	Supportive	Competitive
5,000	Dynamic	Dynamic
10,000	Dynamic	Dynamic
50,000	Negotiable	Negotiable
100,000	Negotiable	Negotiable
500,000	Negotiable	Negotiable

Made in China

SM-LPJ10XXCNL

Manufacturer

LINK-PP China

Description

Magnetic RJ45 Jack

Documents Available

PDF/3D/Step/IGS/Price/Cross

Quantity Available

200,000 PCS or 3 weeks

XFATM2T-COMBO1-4M ELECTRICAL SPECFICATIONS: @25℃
1.Turn Ratio(%%P2%):
1CT∶1CT
2.Inductance OCL: 350uH MIN
@100KHz/0.1V,8mA DC Bias
3.Insertion Loss:
-1.0dB MAX @ 1.0～65MHz
4.Return Loss:
-20dB MIN @ 1～10MHz
-16dB MIN @ 10～30MHz
-12dB MIN @ 30～60MHz
-10dB MIN @ 60～100MHz
5.Cross talk:
-40dB MIN @ 1～30MHz
-35dB MIN @ 30～60MHz
-30dB MIN @ 60～100MHz
6.Common Mode Rejection:
-30dB MIN @ 1～50MHz
-20dB MIN @ 50～150MHz
7.Hipot Test: 1500Vrms MIN
