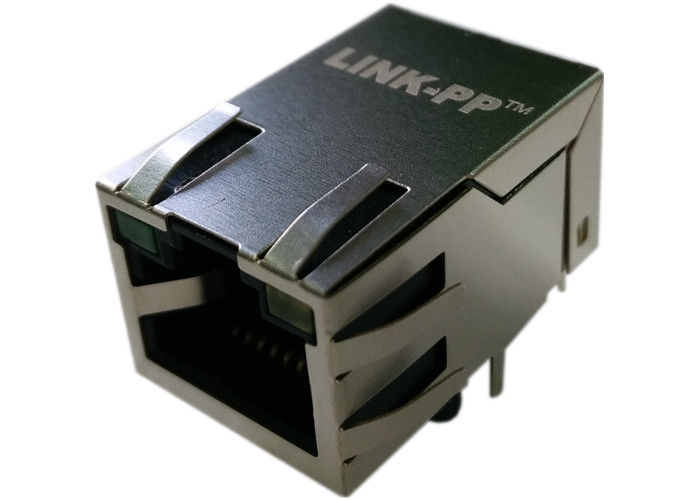

XFATM6-CTxu1-4M PHY Interface Rj45 Magnetics 10/100Base-T W/LED

Name: XFATM6-CTxu1-4M PHY Interface Rj45 Magnetics 10/100Base-T W/LED
Brand: LINK-PP
SKU: XFATM6-CTxu1-4M
Rating: 4.8 (138 reviews)

Product Details

Place of Origin: China

Brand Name: LINK-PP

Certification: UL,ROHS,Reach,ISO

Model Number: XFATM6-CTxu1-4M

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000

Price: Supportive

Packaging Details: 50pcs/tray,1200pcs/carton

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 4600K.PCS/Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                stacked rj45 connectors, rj45 magnetic jack


Part Number:	XFATM6-CTxu1-4M	Samples:	Active&Available
Category:	Magnetic RJ45 Jack	Interface:	10/100Mbps
Port:	1x1	Made In China:	SM-LPJ10XXANL

Part Number:	XFATM6-CTxu1-4M
Samples:	Active&Available
Category:	Magnetic RJ45 Jack
Interface:	10/100Mbps
Port:	1x1
Made In China:	SM-LPJ10XXANL

XFATM6-CTxu1-4M PHY Interface Rj45 Magnetics 10/100Base-T W/LED

XFATM6-CTxu1-4M

Trader Part Number

XFATM6-CTxu1-4M

Price Break	Unit Price	Extended Price
1-5	A	-
10-50	B	-
100-500	C-1	-
1,000-2,500	Supportive	-
5,000	Dynamic	Dynamic
10,000	Dynamic	Dynamic
50,000	Negotiable	Negotiable
100,000	Negotiable	Negotiable
500,000	Negotiable	Negotiable

Made in China

SM-LPJ10XXANL

Manufacturer

LINK-PP China

Description

Magnetic RJ45 Jack

Documents Available

PDF/3D/Step/IGS/Price/Cross

Quantity Available

2000,000 PCS or 3weeks

XFATM6-CTxu1-4M ELECTRICAL SPECFICATIONS @25℃ NOTES:
1.Turns Ratio:
TX = 1CT:1CT RX = 1CT:1CT
2.OCL(100KHz,0.1V,8mA DC BIAS):
350uH MIN
3.Insertion Loss:
1～100MHz:-1.5dB MAX
4.Return Loss(@100Ω±15%):
2～30MHz:-16dB MIN
60～80MHz:-10dB MIN
5.Crosstalk:
0.1～100MHz:-30dB MIN
6.Hipot Test: 1500Vrms MIN
