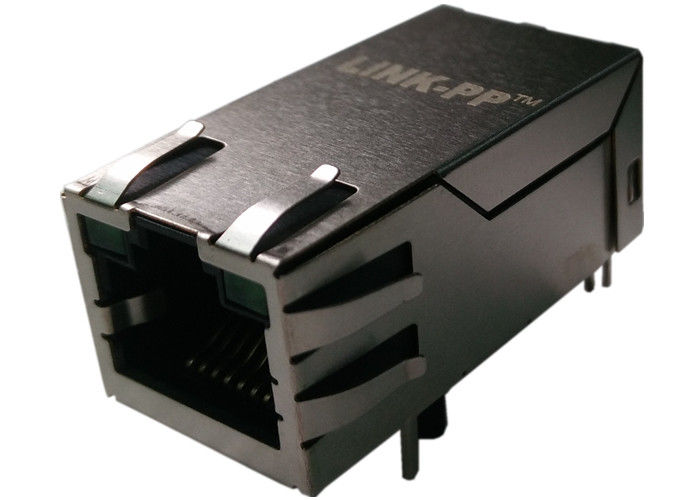

XFVOIP5Q-CTxu1-4L Rj45 With Integrated Magnetics POE Interface 10/100BT

Name: XFVOIP5Q-CTxu1-4L Rj45 With Integrated Magnetics POE Interface 10/100BT
Brand: LINK-PP
SKU: XFVOIP5Q-CTMG1-4L
Price: 0.09 USD
Availability: InStock
Rating: 5 (103 reviews)

Product Details

Place of Origin: GuangDong, China

Brand Name: LINK-PP

Certification: ISO9001,SGS,UL,CE,REACH163

Model Number: XFVOIP5Q-CTMG1-4L

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/25K

Price: $0.09-$1.85

Packaging Details: Tray & Carton&Reel

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 3000000/Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                poe rj45 pinout, rj45 power over ethernet


Part Number:	XFVOIP5Q-CTMG1-4L	Samples:	Active&Available
Category:	POE Rj45 Jack	Interface:	10/100 AutoMDIX
TURNS RATIO:	1CT:1CT & 1CT:1CT	Made In China:	SM-LPJ10XXAXNL

Part Number:	XFVOIP5Q-CTMG1-4L
Samples:	Active&Available
Category:	POE Rj45 Jack
Interface:	10/100 AutoMDIX
TURNS RATIO:	1CT:1CT & 1CT:1CT
Made In China:	SM-LPJ10XXAXNL

XFVOIP5Q-CTxu1-4L Rj45 With Integrated Magnetics POE Interface 10/100BT

XFVOIP5Q-CTMG1-4L = XFVOIP5Q-CTxu1-4L

Trader Part Number

XFVOIP5Q-CTMG1-4L

Price Break	Unit Price	Extended Price
1-5	A	-
10-50	B	-
100-500	C-1	-
1,000-2,500	Supportive	Competitive
5,000	Dynamic	Dynamic
10,000	Dynamic	Dynamic
50,000	Negotiable	Negotiable
100,000	Negotiable	Negotiable
500,000	Negotiable	Negotiable

Made in China

SM-LPJ10XXAXNL

Manufacturer

LINK-PP China

Description

POE Rj45 Jack

Documents Available

PDF/3D/Step/IGS/Price/Cross

Quantity Available

200,000 PCS or 3 weeks

XFVOIP5Q-CTMG1-4L ELECTRICAL SPECFICATIONS: @25℃
1.Turn Ratio(%P2%):
1CT:1CT & 1CT:1CT
2.Inductance OCL: 350uH MIN
@100KHz/0.1V,8mA DC Bias
3.Insertion Loss:
-1.0dB MAX @ 1.0～65MHz
4.Return Loss:
-20dB MIN @ 1～10MHz
-16dB MIN @ 10～30MHz
-12dB MIN @ 30～60MHz
-10dB MIN @ 60～100MHz
5.Cross talk:
-40dB MIN @ 1～30MHz
-35dB MIN @ 30～60MHz
-30dB MIN @ 60～100MHz
6.Common Mode Rejection:
-30dB MIN @ 1～50MHz
-20dB MIN @ 50～150MHz
7.Hipot Test: 1500Vrms MIN
