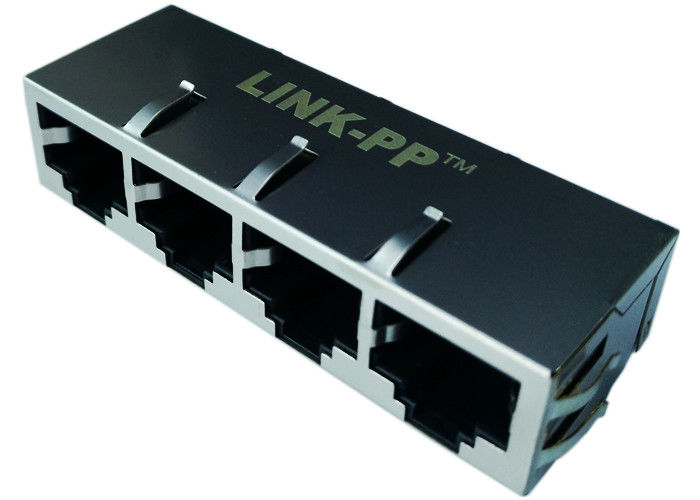

XFATM10-COMBO4-4M Multi-port RJ45 1x4 Magnetic Connector 10/100BT

China LINK-PP INT'L TECHNOLOGY CO., LIMITED certification
China LINK-PP INT'L TECHNOLOGY CO., LIMITED certification
WOW , 100% Tested ,Zero Defective

—— TI

LINK-PP is Our Best Supplier in China

—— Intel

Thanks a Lot For Supplying Excellent RJ45 And Transformer ,LINK-PP Deserve the Consideration Worldwidely

—— Cisco

LINK-PP is Flex type A Vendor For All RJ45 Connector and Transformer

—— Flextronics

I'm Online Chat Now

XFATM10-COMBO4-4M Multi-port RJ45 1x4 Magnetic Connector 10/100BT

XFATM10-COMBO4-4M Multi-port RJ45 1x4 Magnetic Connector 10/100BT
XFATM10-COMBO4-4M Multi-port RJ45 1x4 Magnetic Connector 10/100BT

Large Image :  XFATM10-COMBO4-4M Multi-port RJ45 1x4 Magnetic Connector 10/100BT

Product Details:

Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: ISO9001,SGS,UL,CE,REACH163
Model Number: XFATM10-COMBO4-4M

Payment & Shipping Terms:

Minimum Order Quantity: 200 PCS
Price: Supportive
Packaging Details: Tray & Carton&Reel
Delivery Time: Stock or 3 weeks
Payment Terms: Paypal , T/T, Western Union
Supply Ability: 3000000/Month
Detailed Product Description
Part Number: XFATM10-COMBO4-4M Samples: Active&Available
Category: Multi-port RJ45 Interface: 10/100-Mbps
Port: 1x4 Made In China: SM-LPJ4XXXXCNL
High Light:

modular jacks rj45

,

dual rj45 jack

XFATM10-COMBO4-4M Multi-port RJ45 1x4 Magnetic Connector 10/100BT



XFATM10-COMBO4-4M = xatm10CB44m
Trader Part Number
XFATM10-COMBO4-4M
Price Break
Unit Price
Extended Price
1-5
A
-
10-50
B
-
100-500
C-1
-
1,000-2,500
Supportive
-
5,000
Dynamic
Dynamic
10,000
Dynamic
Dynamic
50,000
 Negotiable
Negotiable
100,000
 Negotiable
Negotiable
500,000
 Negotiable
Negotiable
Made in China
SM-LPJ4XXXXCNL
Manufacturer
LINK-PP China
Description
Multi FastJack 4 Ports
Documents Available
PDF/3D/Step/IGS/Price/Cross
Quantity Available
2000,000 PCS or 3weeks



XFATM10-COMBO4-4M ELECTRICAL SPECFICATIONS @25℃   NOTES:
1.Turns Ratio:
  1CT:1 & 1CT:1CT
2.OCL(100KHz,0.1V,8mA DC BIAS):
  350uH MIN
3.Insertion Loss:
  1~100MHz:-1.5dB MAX
4.Return Loss(@100Ω±15%):
  2~30MHz:-16dB MIN
  60~80MHz:-10dB MIN
5.Crosstalk:
  0.1~100MHz:-30dB MIN
6.Hipot Test: 1500Vrms MIN
