Product Details
Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: LMJ3628843TA753
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000
Price: Supportive
Packaging Details: Tray & Carton&Reel
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3000000/Month
Item: |
LMJ3628843TA753 |
Samples: |
Available Free |
Orientation: |
90° Angle (Right) |
Interface: |
10/100 Base-T, AutoMDIX |
LED: |
Flexible |
Made In China: |
SM-LPJ0011BBNL |
Item: |
LMJ3628843TA753 |
Samples: |
Available Free |
Orientation: |
90° Angle (Right) |
Interface: |
10/100 Base-T, AutoMDIX |
LED: |
Flexible |
Made In China: |
SM-LPJ0011BBNL |
|
LMJ3628843TA753
|
||||||||||||||||||||||||||||||||
|
Trader Part Number
|
LMJ3628843TA753 |
|
||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Made in China Cross
|
SM-LPJ0011BBNL
|
|||||||||||||||||||||||||||||||
|
Manufacturer
|
LINK-PP China
|
|||||||||||||||||||||||||||||||
|
Description
|

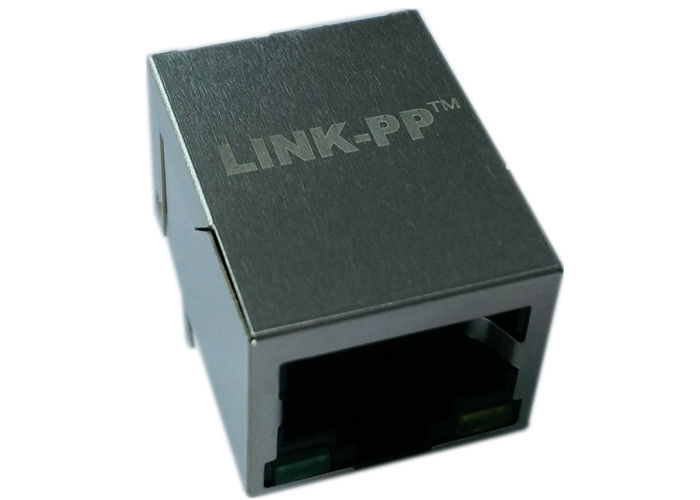

Rj45 Right Angle PCB Jack | |||||||||||||||||||||||||||||||
|
Documents Available
|
PDF/3D/Step/IGS/Price/Cross
|
|||||||||||||||||||||||||||||||
|
Quantity Available
|
200,000 PCS or 4 weeks
|
|||||||||||||||||||||||||||||||
|
|
| ELECTRICAL SPECFICATIONS: @25℃ 1.Turn Ratio(±2%): 1CT:1CT 2.Inductance OCL: 350uH MIN @ 100KHz 0.1V 8mA DC Bias 3.Insertion Loss: -1.0dB MAX @ 1.0-100MHz 4.Return Loss: -18dB MIN @ 1-30MHz -15dB MIN @ 30-60MHz -12dB MIN @ 60-80MHz -10dB MIN @ 80-100MHz |
5.Cross talk: -40dB MIN @ 30MHz -35dB MIN @ 60MHz -30dB MIN @ 100MHz 6.Common Mode Rejection: -40dB MIN @ 30MHz -35dB MIN @ 60MHz -30dB MIN @ 100MHz 7.Hipot: 1500Vrms |
| LMJ3628843TA753 | AR14-3637I | AR11-3909I | AR26-4057 |
| MJF13T36UL-KF06B3YG-0808 | AR21-4042 | ARA517-1252S | AR28-3771 |
| AR11-3718 | AR21-3977 | AR11-3846 | AR28-3768 |
