RJMG233022610ER RJ45 Over USB Connector 1000 Base-T Filter Integrated Jack

Good quality Magnetic RJ45 Jack for sales
Good quality Magnetic RJ45 Jack for sales
WOW , 100% Tested ,Zero Defective

—— TI

LINK-PP is Our Best Supplier in China

—— Intel

Thanks a Lot For Supplying Excellent RJ45 And Transformer ,LINK-PP Deserve the Consideration Worldwidely

—— Cisco

LINK-PP is Flex type A Vendor For All RJ45 Connector and Transformer

—— Flextronics

I'm Online Chat Now

RJMG233022610ER RJ45 Over USB Connector 1000 Base-T Filter Integrated Jack

China RJMG233022610ER RJ45 Over USB Connector 1000 Base-T Filter Integrated Jack supplier
RJMG233022610ER RJ45 Over USB Connector 1000 Base-T Filter Integrated Jack supplier RJMG233022610ER RJ45 Over USB Connector 1000 Base-T Filter Integrated Jack supplier RJMG233022610ER RJ45 Over USB Connector 1000 Base-T Filter Integrated Jack supplier

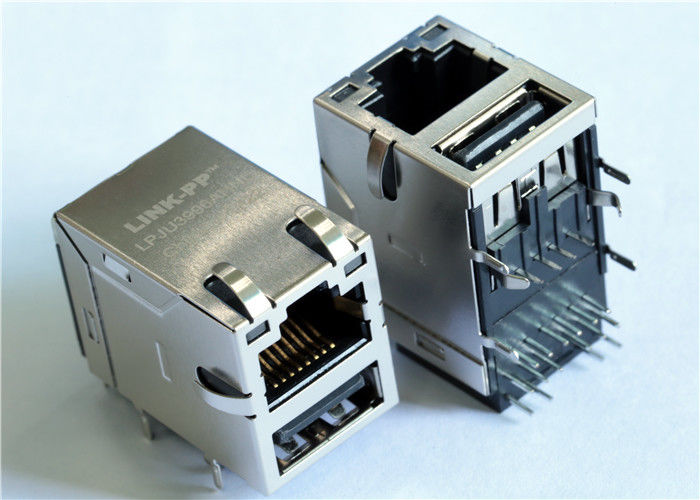

Large Image :  RJMG233022610ER RJ45 Over USB Connector 1000 Base-T Filter Integrated Jack

Product Details:

Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: ISO9001,SGS,UL,CE,REACH163
Model Number: LPJU3936AONL

Payment & Shipping Terms:

Minimum Order Quantity: 500/1000
Price: Supportive
Packaging Details: Tray & Carton&Reel
Delivery Time: Stock or 3-4 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 3000000/Month
Contact Now
Detailed Product Description
Designe PN#: RJMG233022610ER Samples: Available Free
Orientation: 90° Angle (Right) Interface: 1000Mbps
LED: Flexible Cross Rf: LPJU3936AONL = RJMG233022610ER
Category: 1000M Rj45 Comb USB Document: 3D STep Drawing

Pin to Pin RJMG233022610ER RJ45 Over USB Connector 1000Base-T Compatible



RJMG233022610ER Equivalent
Trader Part Number
RJMG233022610ER
Price Break
Unit Price
Extended Price
1-5
AF
-
10-50
BE
-
100-500
C-12
-
1,000-2,500
Supportive
Competitive
5,000
Dynamic
Dynamic
10,000
Dynamic
Dynamic
50,000
 Negotiable
Negotiable
100,000
 Negotiable
Negotiable
500,000
 Negotiable
Negotiable
ALternate Cross
LPJU3936AONL
Manufacturer
LINK-PP China
Description
Rj45 Over USB PCB Jack
Documents Available
PDF/3D/Step/IGS/Price/Cross
Quantity Available
200,000 PCS or 4 weeks

RJMG233022610ER RJ45 Over USB Connector 1000 Base-T Filter Integrated Jack

RJMG233022610ER ELECTRICAL SPECFICATIONS: @25℃
1.Turn Ratio(±2%):
  1CT:1CT
2.Inductance OCL:
  350uH MIN @ 100KHz 0.1V 8mA DC Bias
3.Insertion Loss:
  -1.0dB MAX @ 1.0-100MHz
4.Return Loss:
  -18dB MIN @ 1-30MHz
  -15dB MIN @ 30-60MHz
  -12dB MIN @ 60-80MHz
  -10dB MIN @ 80-100MHz
5.Cross talk:
  -40dB MIN @ 30MHz
  -35dB MIN @ 60MHz
  -30dB MIN @ 100MHz
6.Common Mode Rejection:
  -40dB MIN @ 30MHz
  -35dB MIN @ 60MHz
  -30dB MIN @ 100MHz
7.Hipot: 1500Vrms



RJMG233022610ER AR14-3637I AR11-3909I AR26-4057
MJF13T36UL-KF06B3YG-0808 AR21-4042 ARA517-1252S AR28-3771
AR11-3718 AR21-3977 AR11-3846 AR28-3768



1000 Base-T
Impedance: 100OHMS
RJ45 jack cavity conforms to FCC rules and regulations Part 68, SUB Part F

Industrial Operating Temp: 0ºC to +70ºC Or  -40ºC to +85ºC
Optional Gold Plating Thickness
Other LED Patterns available
