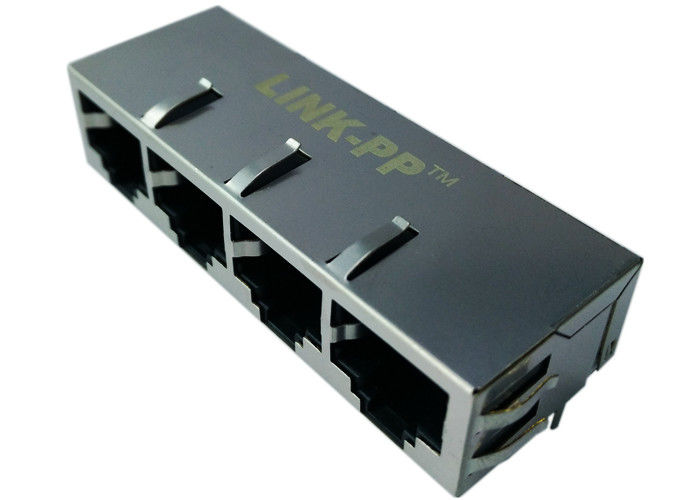

Quad-port RJ45 1x4 Tab-Down HFJ14-E2450ERL 1000Base-T Connector LPJF46401-9CNL

China Quad-port RJ45 1x4 Tab-Down HFJ14-E2450ERL 1000Base-T Connector LPJF46401-9CNL supplier

Large Image :  Quad-port RJ45 1x4 Tab-Down HFJ14-E2450ERL 1000Base-T Connector LPJF46401-9CNL

Product Details:

Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: ISO9001,SGS,UL,CE,REACH163
Model Number: HFJ14-E2450ERL

Payment & Shipping Terms:

Minimum Order Quantity: 200/1200/1320
Price: Supportive
Packaging Details: Tray & Carton&Reel
Delivery Time: Stock or 3-4 weeks
Payment Terms: Paypal , T/T, Western Union
Supply Ability: 3000000/Month
Contact Now
Detailed Product Description
Design PN#: HFJ14-E2450ERL Samples: Available Free
Orientation: 90° Angle (Right) Interface: 1000Mbps
LED: Flexible Made In China: SM-LPJF46401-9CNL

Quad-port RJ45 1x4 Tab-Down HFJ14-E2450ERL 1000Base-T Connector LPJF46401-9CNL



HFJ14-E2450ERL
Trader Part Number
HFJ14-E2450ERL
Price Break
Unit Price
Extended Price
1-5
AF
-
10-50
BE
-
100-500
C-12
-
1,000-2,500
Supportive
Competitive
5,000
Dynamic
Dynamic
10,000
Dynamic
Dynamic
50,000
 Negotiable
Negotiable
100,000
 Negotiable
Negotiable
500,000
 Negotiable
Negotiable
Made in China Cross
SM-LPJF46401-9CNL
Manufacturer
LINK-PP China
Description
Rj45 4 Ports 1000M Jack
Documents Available
PDF/3D/Step/IGS/Price/Cross
Quantity Available
200,000 PCS or 4 weeks



HFJ14-E2450ERL ELECTRICAL SPECFICATIONS: @25℃
1.Turn Ratio(±2%):
  1CT:1CT
2.Inductance OCL:
  350uH MIN @ 100KHz 0.1V 8mA DC Bias
3.Insertion Loss:
  -1.0dB MAX @ 1.0-100MHz
4.Return Loss:
  -18dB MIN @ 1-30MHz
  -15dB MIN @ 30-60MHz
  -12dB MIN @ 60-80MHz
  -10dB MIN @ 80-100MHz
5.Cross talk:
  -40dB MIN @ 30MHz
  -35dB MIN @ 60MHz
  -30dB MIN @ 100MHz
6.Common Mode Rejection:
  -40dB MIN @ 30MHz
  -35dB MIN @ 60MHz
  -30dB MIN @ 100MHz
7.Hipot: 1500Vrms
HFJ14-E2450ERL HFJ14-1G16ERL AR11-3909I AR26-4057
HFJ14-E1G16ER-L11RL AR21-4042 ARA517-1252S AR28-3771
HFJ14-E1G41ER-L11RL AR21-3977 AR11-3846 AR28-3768
  • 1000 Base-T
  • Impedance: 100OHMS
  • RJ45 jack cavity conforms to FCC rules and regulations Part 68, SUB Part F
  • Industrial Operating Temp: 0ºC to +70ºC Or  -40ºC to +85ºC
  • Optional Gold Plating Thickness
  • Other LED Patterns available

Successful Customer:

Texas Instruments

LINK-PP is the preferred supplier of TI.

Welcome to visit the TI website: http://www.ti.com/tool/beaglebk#0

You will look at our logo "LINK-PP" on BeagleBone Board.

Quad-port RJ45 1x4 Tab-Down HFJ14-E2450ERL 1000Base-T Connector LPJF46401-9CNL



FAQ

1.Are you the real manufacturer?

Yes. We are the real manufacturer since 1997.

2.Can you accept small order?

Yes, small order is available .We support new project of our customers as we know business is always from

small order.

3.Which kind of certification you have ?

ISO9001, SGS, UL, RoHs.

4.What is your delivery time?

Usually within 2-3 working days

5.What is your payment way?

T/T, L/C, D/P,MoneyGram,Western Union and Paypal.

6.Can you supply customized products and logo?

Yes. We supply OEM&ODM service. You can send us your drawing.
