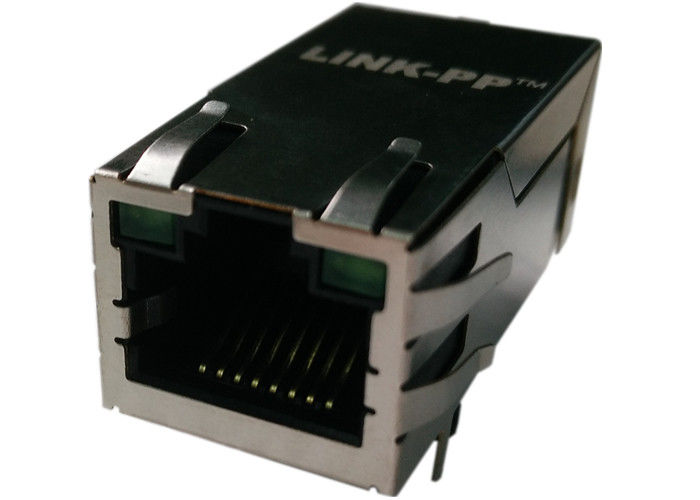

HFJT1-LGHRPE-L12RL Rj45 Power Over Ethernet LPJK6070AHNL 10/100/1000 Mbps
HFJT1-LGHRPE-L12RL Rj45 Power Over Ethernet LPJK6070AHNL 10/100/1000 Mbps

HFJT1-LGHRPE-L12RL Rj45 Power Over Ethernet LPJK6070AHNL 10/100/1000 Mbps

Product Details

Place of Origin: China

Brand Name: LINK-PP

Certification: UL,ROHS,Reach,ISO

Model Number: HFJT1-LGHRPE-L12RL

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/25K

Price: $0.05-$1.28

Packaging Details: 50pcs/tray,1200pcs/carton

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 4200K-PCS/Month

Get Best Price

Product Details

Product Description
Highlight:

rj-45 ethernet jack

,

industrial rj45 connector

Part Number:
HFJT1-LGHRPE-L12RL
Equivalent:
LPJK6070AHNL
I/O:
10/100/1000 Ethernet
Samples:
Available
Part Number:
HFJT1-LGHRPE-L12RL
Equivalent:
LPJK6070AHNL
I/O:
10/100/1000 Ethernet
Samples:
Available
HFJT1-LGHRPE-L12RL Rj45 Power Over Ethernet LPJK6070AHNL 10/100/1000 Mbps

HFJT1-LGHRPE-L12RL Rj45 Power Over Ethernet LPJK6070AHNL 10/100/1000 Mbps

  • Power Over Ethernet Rj45 Magnetics Module
  • 10/100/1000 Mbps Ethernet
  • 1X1 Tab-up POE+ Rj45
  • Hi-pot: 1500Vmrs Min
  • 33.02mm length RJ45 Magjack



HFJT1-LGHRPE-L12RL = LPJK6070AHNL

 Electrical Specifications @25℃
1.Inductance: 350uH Min
@ 100KHz,0.1V,8mA DC BIAS
2.Turns Ratio(±2%): 1CT∶1CT
3.Insertion Loss:
1-100MHz:-1.0dB Max
4.Return Loss(load 100Ω):
1-30MHz:-18dB Min
30-60MHz:-16dB Min
60-80MHz:-12dB Min
80-100MHz:-10dB Min
5.Crosstalk:
1-100MHz:-30dB Min
6.Common Mode Rejection:
1-100MHz:-30dB Min
7.Hipot:1500Vrms Min @60Hz
8.Operating Temperature: -40℃～+85℃.

HFJT1-LGHRPE-L12RL Rj45 Power Over Ethernet LPJK6070AHNL 10/100/1000 Mbps 0

 HFJT1-LGHRPE-L12RL Rj45 Power Over Ethernet LPJK6070AHNL 10/100/1000 Mbps 1
