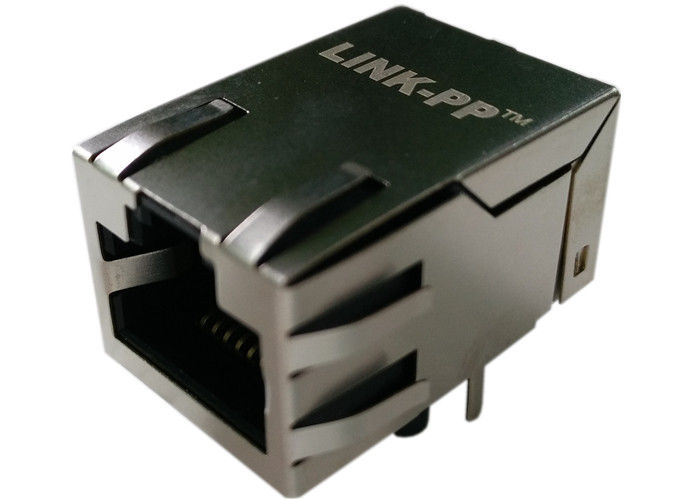

XFGIG8B-CT1-4M RJ45 Combo Transformers 10/100/1000 Full Duplex
XFGIG8B-CT1-4M RJ45 Combo Transformers 10/100/1000 Full Duplex

XFGIG8B-CT1-4M RJ45 Combo Transformers 10/100/1000 Full Duplex

Product Details

Place of Origin: Guangdong,China

Brand Name: LINK-PP

Certification: UL,ROHS,Reach,ISO

Model Number: XFGIG8B-CT1-4M

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/25K

Price: $0.09-$1.85

Packaging Details: 50pcs/tray,1200pcs/carton

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 250000-320000/Month

Get Best Price

Product Details

Product Description
Highlight:

single port rj45

,

rj45 smd connector

Part Number:
XFGIG8B-CT1-4M
Equivalent:
LPJGxxSMCNL
Ethernet:
10/100/1000 Ethernet
Samples:
Available
Part Number:
XFGIG8B-CT1-4M
Equivalent:
LPJGxxSMCNL
Ethernet:
10/100/1000 Ethernet
Samples:
Available
XFGIG8B-CT1-4M RJ45 Combo Transformers 10/100/1000 Full Duplex

XFGIG8B-CT1-4M RJ45 Combo Transformers 10/100/1000 Full Duplex

  • 1x Gigabit Ethernet (10/100/1000) tab-up Vertion
  • Hi-pot: 1500Vmrs Min
  • Telecom transformers and RJ45 Gigabit Modules
  • XFGIG8B-CT1-4M



XFGIG8B-CT1-4M

ELECTRICAL SPECFICATIONS @25℃
1.Turn Ratio
TX=1CT:1CT RX=1CT:1CT
2.Inductance OCL: 350uH MIN
@100KHz,100mV,8mA DC Bias
3.Insertion Loss:
-1.0dB MAX @ 1～65MHz
4.Return Loss:
-20dB MIN @ 1～10MHz
-16dB MIN @ 10～30MHz
-12dB MIN @ 30～60MHz
-10dB MIN @ 60～80MHz
5.Cross talk:
-40dB MIN @ 1～30MHz
-35dB MIN @ 30～60MHz
-30dB MIN @ 60～100MHz
6.Common Mode Rejection:
-30dB MIN @ 1～50MHz
-20dB MIN @ 50～150MHz
7.Hipot Test: 1500Vrms @60Hz
XFGIG8B-CT1-4M RJ45 Combo Transformers 10/100/1000 Full Duplex 0

XFGIG8B-CT1-4M RJ45 Combo Transformers 10/100/1000 Full Duplex 1
