RB1-105B8G6A 1x1 Rj45 Gigabit Ethernet ,1:1 Turn Radio LPJG0887CNL

Name: RB1-105B8G6A 1x1 Rj45 Gigabit Ethernet ,1:1 Turn Radio LPJG0887CNL
Brand: LINK-PP
SKU: RB1-105B8G6A
Price: 0.09 USD
Availability: InStock
Rating: 4.9 (198 reviews)

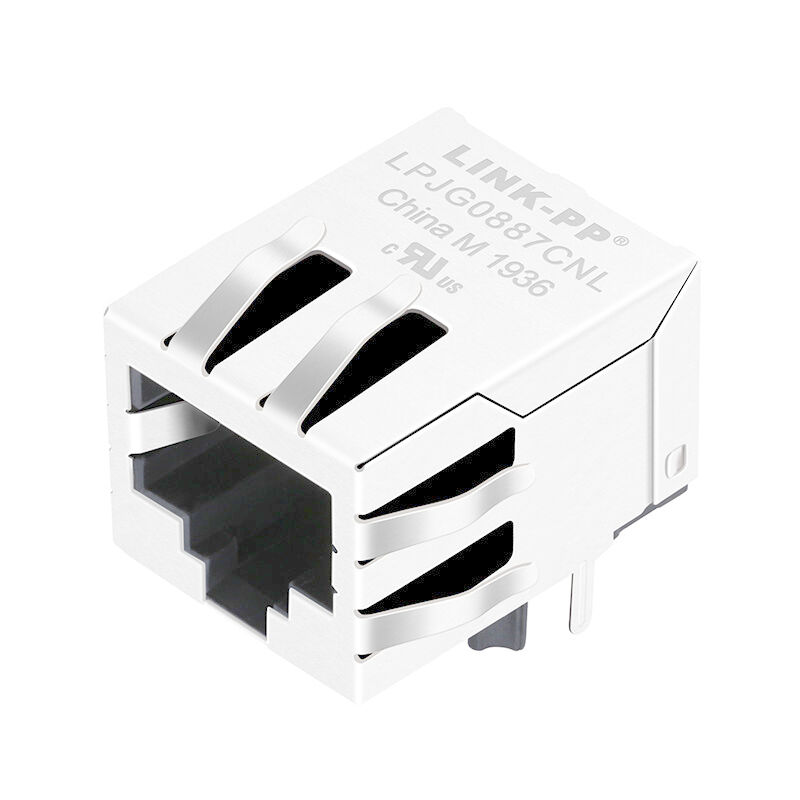

Large Image : RB1-105B8G6A 1x1 Rj45 Gigabit Ethernet ,1:1 Turn Radio LPJG0887CNL

Product Details:

Place of Origin:	Guangdong,China
Brand Name:	LINK-PP
Certification:	UL,ROHS,Reach,ISO
Model Number:	RB1-105B8G6A

Payment & Shipping Terms:

Minimum Order Quantity:	50/500/1000/25K
Price:	$0.09-$1.85
Packaging Details:	50pcs/tray,1200pcs/carton
Delivery Time:	Stock
Payment Terms:	TT,NET30/60/90 Days
Supply Ability:	250000-320000/Month

Contact Now

Detailed Product Description

Part Number:

JKM-0003NL

Equivalent:

LPJG0887CNL

Ethernet:

10/100/1000 Ethernet

Samples:

Available

Highlight:

rj45 smd connector

shielded rj45 plugs

RB1-105B8G6A 1x1 Rj45 Gigabit Ethernet ,1:1 Turn Radio LPJG0887CNL

P/N: RB1-105B8G6A
RJ45 1X1 Tab Down
Cross PN LPJG0887CNL
Through Hole
Gigabit Ethernet
Rj45 Connector without led
Right Angle Ethernet Connectors

RB1-105B8G6A = LPJG0887CNL

ELECTRICAL SPECFICATIONS @25℃ 1.Turn Ratio(±2%): 1CT∶1CT 2.Inductance OCL: 350uH MIN @100KHz/0.1V,8mA DC Bias 3.Insertion Loss: -1.0dB MAX @ 1.0-65MHz 4.Return Loss: -20dB MIN @ 1-10MHz -16dB MIN @ 10-30MHz -12dB MIN @ 30-60MHz -10dB MIN @ 60-100MHz 5.Cross talk: -40dB MIN @ 1-30MHz -35dB MIN @ 30-60MHz -30dB MIN @ 60-100MHz 6.Common Mode Rejection: -30dB MIN @ 1-50MHz -20dB MIN @ 50-150MHz 7.Hipot Test: 1500Vrms MIN 8.Operating Temperature Range: 0℃ TO 70℃
