Home > products > RJ45 Modular Jack > 99961101-01 USB2.0 A Type Connector Right Angle RoHS , LPUSB1001

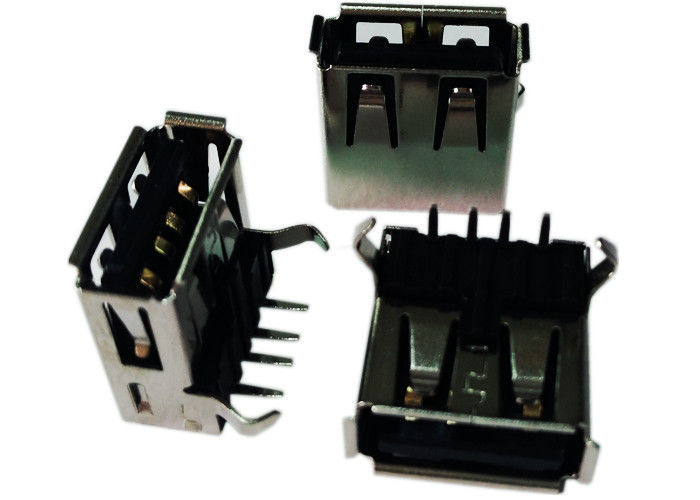

99961101-01 USB2.0 A Type Connector Right Angle RoHS , LPUSB1001

Product Details

Place of Origin: GuangDong, China

Brand Name: LINK-PP

Certification: UL,RoHS,Reach,ISO

Model Number: 99961101-01

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/60K

Price: $0.11-$24

Packaging Details: Tray

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 180K/Month

Get Best Price
Highlight:

rj45 to usb connector

,

rj45 naar usb

Specifications:
99961101-01
Corss Part:
LPUSB1001
Orientation:
90° Angle (Right)
Port:
1x1
CONTACT CURRENT RATING:
1Amp
Samples:
Free Available
Specifications:
99961101-01
Corss Part:
LPUSB1001
Orientation:
90° Angle (Right)
Port:
1x1
CONTACT CURRENT RATING:
1Amp
Samples:
Free Available
99961101-01 USB2.0 A Type Connector Right Angle RoHS , LPUSB1001

99961101-01 USB2.0 A Type Connector Right Angle RoHS , LPUSB1001

MATERIAL:
PIN TERMINAL : PHOSPHOR BRONZE SELECTIVE GOLD PLATED
(GOLD ON MATING SIDE & TIN ON SOLDERING SIDE)
INSULATOR : PBT, UL 94V-O
SHELL : BRASS, NICKEL PLATED

ELECTRICAL DATA:
CONTACT CURRENT RATING : 1 Amp
DIELECTRIC WITHSTAND VOLTAGE : AC 750V r.m.s
INSULATION RESISTANCE : 1000 MEGAOHMS MIN
CONTACT RESISTANCE : 30 MILLIOHMS
DURABILITY : 3000 Mating Circles
ENVIRONMENTAL DATA:
OPERATING TEMP RANGE : -40℃ TO +80℃
