Product Details
Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO

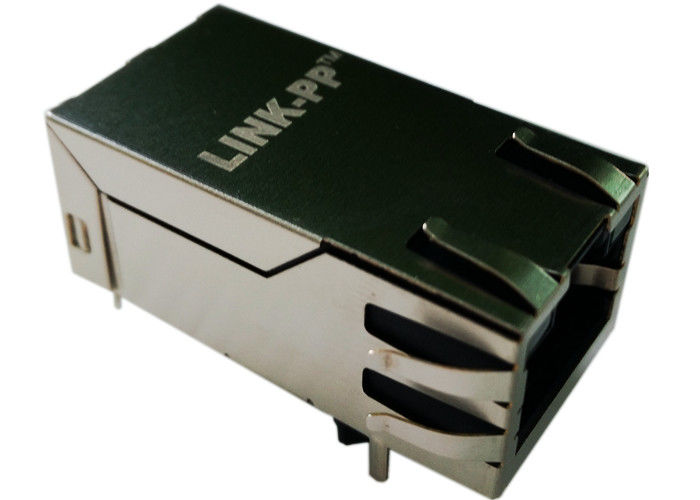

Model Number: RT5-3670KC1Q
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000
Price: Supportive&Discount
Packaging Details: 60 pcs /Tray16trays/carton,Size37*30*30 cm, 11KGS (960 pcs) /Carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3000000/Month
Specification: |
RT5-3670KC1Q |
Cross Part: |
LPJK0039AONL |
Original Munafactuer: |
LINK-PP |
Lan: |
10/100/1000Mbps |
Termination: |
Solder |
Samples: |
Available Free |
Specification: |
RT5-3670KC1Q |
Cross Part: |
LPJK0039AONL |
Original Munafactuer: |
LINK-PP |
Lan: |
10/100/1000Mbps |
Termination: |
Solder |
Samples: |
Available Free |
| 1.OCL(100KHz,0.1V,8mA DC Bias): 350uH min 2.Turns Ratio(±2%): TX=1CT:1 RX=1CT:1 3.Insertion Loss: 1-100MHz:-1.0dB MAX 4.Return Loss(dB MIN): 1-10MHz:-20 30MHz:-16 60-80MHz:-12 80-100MHz:-10 5.Crosstalk(dB MIN): 1-10MHz:-40 32-65MHz:-35 65-100MHz:-30 6.CMR(dB MIN): 1-125MHz:-30 125-500MHz:-20 7.HI-POT:1500V 8.Operating Temperature: 0～70℃. |
|
|
|
