Product Details
Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO

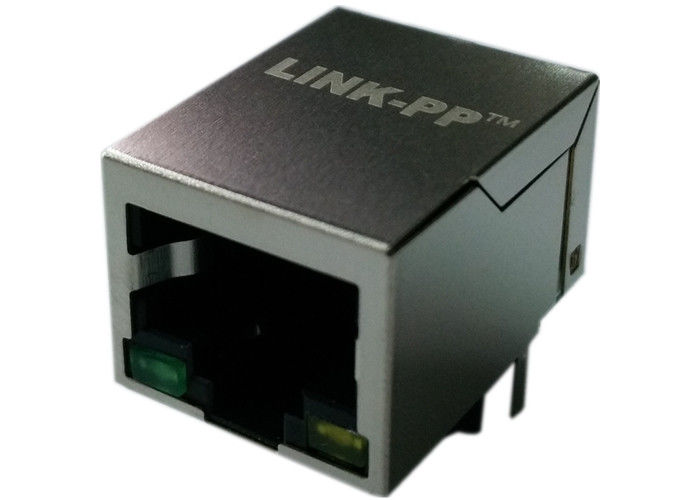

Model Number: RB1-1D6B8K1A
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000
Price: Supportive&Discount
Packaging Details: 60 pcs /Tray,20trays/carton,Size37*30*30 cm, 10KGS (1200 pcs) /Carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3000000/Month
Specification: |
RB1-1D6B8K1A |
Cross: |
LPJ00-11XXNL |
Original Munafactuer: |
LINK-PP |
Lan: |
10/100Mbps |
Termination: |
Solder |
Samples: |
Available Free |
Specification: |
RB1-1D6B8K1A |
Cross: |
LPJ00-11XXNL |
Original Munafactuer: |
LINK-PP |
Lan: |
10/100Mbps |
Termination: |
Solder |
Samples: |
Available Free |
| ELECTRICAL SPECFICATIONS: @25℃ 1.Turn Ratio(±2%): TX=1CT∶1CT RX=1CT∶1CT 2.Inductance OCL: 350uH MIN @ 100KHz 0.1V 8mA DC Bias 3.Insertion Loss: -1.0dB MAX @ 1.0-100MHz 4.Return Loss: -18dB MIN @ 1-30MHz -15dB MIN @ 30-60MHz -12dB MIN @ 60-80MHz -10dB MIN @ 80-100MHz 5.Cross talk: -40dB MIN @ 30MHz -35dB MIN @ 60MHz -30dB MIN @ 100MHz 6.Common Mode Rejection: -40dB MIN @ 30MHz -35dB MIN @ 60MHz -30dB MIN @ 100MHz 7.Hipot: 1500Vrms 8.LED Lamp: Wave Length:GREEN/YELLOW:570nm/590nm Forward Voltage(Vf): 1.8V-2.6V (Test Condition: 20mA) 9.Operating Temperature Range:0℃ TO 70℃ |
|
|
|
