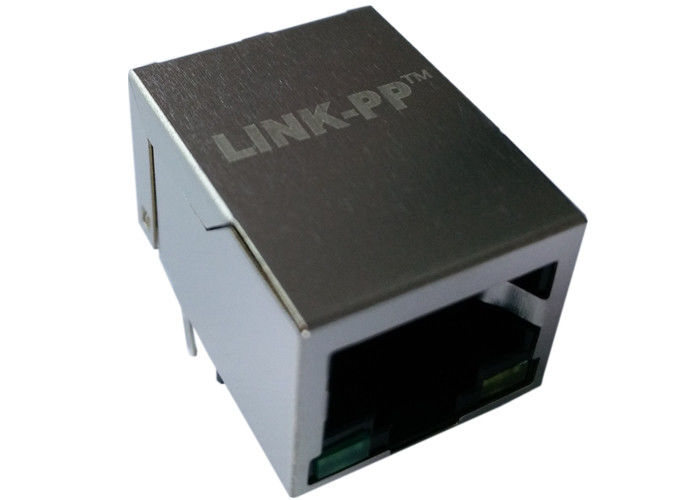

RD1-1D6B8K1A Modular Jack Shielded R/A Single Port 10/100Mbps Ethernet

Name: RD1-1D6B8K1A Modular Jack Shielded R/A Single Port 10/100Mbps Ethernet
Brand: LINK-PP
SKU: RD1-1D6B8K1A
Rating: 4.9 (131 reviews)

Product Details

Place of Origin: GuangDong, China

Brand Name: LINK-PP

Certification: UL,ROHS,Reach,ISO

Model Number: RD1-1D6B8K1A

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000

Price: Supportive&Discount

Packaging Details: 60 pcs /Tray,20trays/carton,Size37*30*30 cm, 10KGS (1200 pcs) /Carton

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 3000000/Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                stacked rj45 connectors, rj45 magnetic jack


Specification:	RDA-1D6B8K1A	Cross:	LPJ00-11XBNL
Original Munafactuer:	LINK-PP	Lan:	10/100Mbps
Termination:	Solder	Samples:	Available

Specification:	RDA-1D6B8K1A
Cross:	LPJ00-11XBNL
Original Munafactuer:	LINK-PP
Lan:	10/100Mbps
Termination:	Solder
Samples:	Available

RD1-1D6B8K1A Modular Jack Shielded R/A Single Port 10/100Mbps Ethernet

Specification # RD1-1D6B8K1A
Cross Part: LPJ00-11XBNL
1x 10/100base-tx Ethernet
Lan Connectors Rj45 With Led Activity

1.Turn Ratio(±2%):
TX=1CT∶1CT

RX=1CT∶1CT
2.Inductance OCL:
350uH MIN @ 100KHz 0.1V 8mA DC Bias
3.Insertion Loss:
-1.0dB MAX @ 1.0-100MHz
4.Return Loss:
-18dB MIN @ 1-30MHz
-15dB MIN @ 30-60MHz
-12dB MIN @ 60-80MHz
-10dB MIN @ 80-100MHz
5.Cross talk:
-40dB MIN @ 30MHz
-35dB MIN @ 60MHz
-30dB MIN @ 100MHz
6.Common Mode Rejection:
-40dB MIN @ 30MHz
-35dB MIN @ 60MHz
-30dB MIN @ 100MHz
7.Hipot: 1500Vrms

RD1-1D6B8K1A Modular Jack Shielded R/A Single Port 10/100Mbps Ethernet 0

8.LED Lamp:
Wave Length:GREEN/YELLOW:570nm/590nm
Forward Voltage(Vf):
1.8V-2.6V (Test Condition: 20mA)
9.Operating Temperature Range:0℃ TO 70℃
