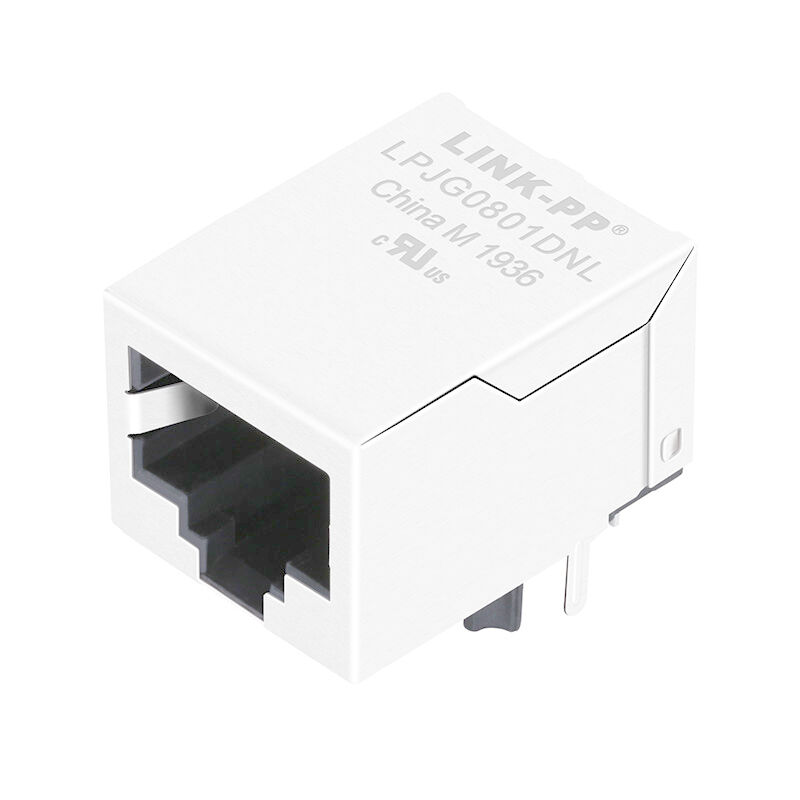

LINK-PP LPJG0801DNL Cross KLA1S109 LF 1x 1000 Base-T Magnetics Rj45

Name: LINK-PP LPJG0801DNL Cross KLA1S109 LF 1x 1000 Base-T Magnetics Rj45
Brand: LINK-PP
SKU: KLA1S109 LF
Rating: 4.9 (100 reviews)

Product Details

Place of Origin: GuangDong, China

Brand Name: LINK-PP

Certification: UL,ROHS,Reach,ISO

Model Number: KLA1S109 LF

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000

Price: Supportive&Discount

Packaging Details: 60pcs /Tray,22 trays/carton,Size37*30*30 cm, 10KGS (1320 pcs) /Carton

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 3000000/Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                rj45 with magnetics, rj45 magnetic jack


Specification:	KLA1S109 LF	Cross:	LPJG0801DNL
Original Munafactuer:	LINK-PP	Lan:	Gigabit Ethernet
Termination:	Solder	Samples:	Available

Specification:	KLA1S109 LF
Cross:	LPJG0801DNL
Original Munafactuer:	LINK-PP
Lan:	Gigabit Ethernet
Termination:	Solder
Samples:	Available

LINK-PP LPJG0801DNL Cross KLA1S109 LF 1x 1000 Base-T Magnetics Rj45

SINGLE RJ45 CONNECTOR MODULE WITH INTEGRATED 1000 BASE-T MAGNETICS
RJ-45 needs to be matched FCC standard
Isolation @ 60Hz: Input to output:1500Vrms.
Comply with RoHS requirements-whole part No Cd, No Hg, No
Cr6+, No PBB and PBDE and No Pb on external pins.
10/100/1000 Mbps Ethernet; RJ-45 connector
LPJG0801DNL Cross KLA1S109 LF

Electrical Specifications @ 25℃
1.Turns Ratio:
TX=1:1 RX=1:1
2.INDUCTANCE(@100KHz,100mV,8mA DC BIAS):
J1-J2;J3-J6;J4-J5;J7-J8: 350uH min
3.Insertion Loss:
0.3～100MHz:-1.2dB Max
4.Return Loss(dB Min.load 100Ω):
1～30MHz:-16 40MHz:-13.5
50MHz:-11.5 60～80MHz:-10
5.Crosstalk(dB Min):
30MHz:-40 60MHz:-36
100MHz:-30
6.Differential to Common Mode Rejection:
30MHz:-35dB Min 60MHz:-32dB Min
100MHz:-30dB Min
7.Isolation Voltage: 1500Vrms
8.Operating Temperature Range: 0℃～70℃.

LINK-PP LPJG0801DNL Cross KLA1S109 LF 1x 1000 Base-T Magnetics Rj45 0
