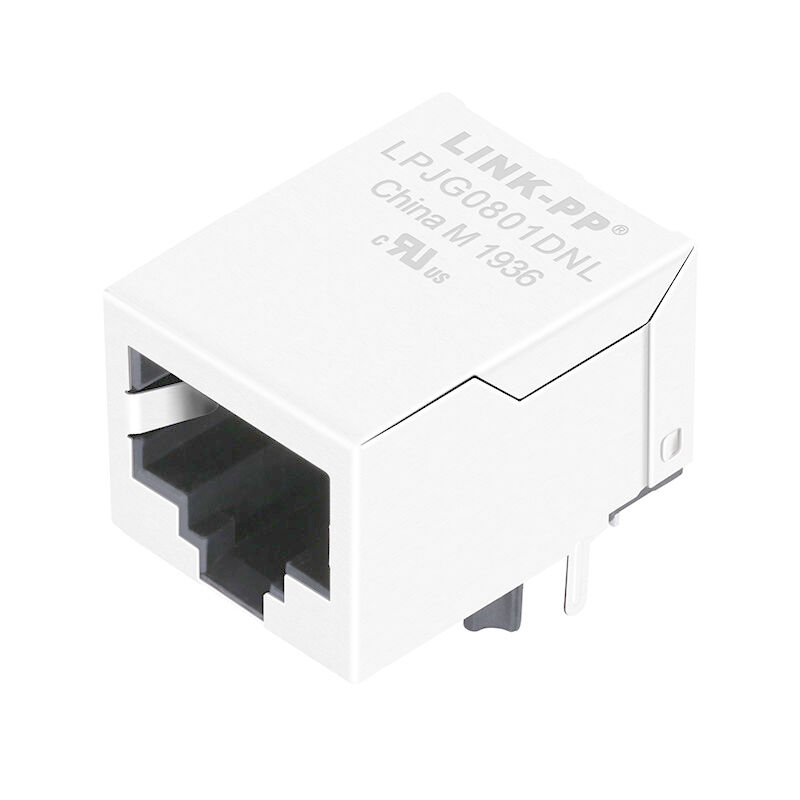

RB1-106BAM1A Integrated Rj45 Jack, LPJG0801DNL Single Port 10/100/1000 Gigabit
RB1-106BAM1A Integrated Rj45 Jack, LPJG0801DNL Single Port 10/100/1000 Gigabit
RB1-106BAM1A Integrated Rj45 Jack, LPJG0801DNL Single Port 10/100/1000 Gigabit
RB1-106BAM1A Integrated Rj45 Jack, LPJG0801DNL Single Port 10/100/1000 Gigabit
RB1-106BAM1A Integrated Rj45 Jack, LPJG0801DNL Single Port 10/100/1000 Gigabit
RB1-106BAM1A Integrated Rj45 Jack, LPJG0801DNL Single Port 10/100/1000 Gigabit
RB1-106BAM1A Integrated Rj45 Jack, LPJG0801DNL Single Port 10/100/1000 Gigabit

RB1-106BAM1A Integrated Rj45 Jack, LPJG0801DNL Single Port 10/100/1000 Gigabit

Product Details

Place of Origin: GuangDong, China

Brand Name: LINK-PP

Certification: UL,ROHS,Reach,ISO

Model Number: KLA1S109LF

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000

Price: Supportive&Discount

Packaging Details: 60pcs /Tray,22 trays/carton,Size37*30*30 cm, 10KGS (1320 pcs) /Carton

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 3000000/Month

Get Best Price

Product Details

Product Description
Highlight:

stacked rj45 connectors

,

rj45 with magnetics

Specification:
RB1-106BAM1A
Cross Part:
LPJG0801DNL
Original Munafactuer:
LINK-PP
Lan:
Gigabit Ethernet
Termination:
Solder
Samples:
Available
Specification:
RB1-106BAM1A
Cross Part:
LPJG0801DNL
Original Munafactuer:
LINK-PP
Lan:
Gigabit Ethernet
Termination:
Solder
Samples:
Available
RB1-106BAM1A Integrated Rj45 Jack, LPJG0801DNL Single Port 10/100/1000 Gigabit

RB1-106BAM1A Integrated Rj45 Jack, LPJG0801DNL Single Port 10/100/1000 Gigabit

  • RJ45 With Integrated Magnetics
  • 1x10/100/1000 Gigabit Ethernet port
  • Tab-down Without LED
  • LPJG0801DNL Cross RB1-106BAM1A


1.Turns Ratio:
TX=1:1 RX=1:1
2.INDUCTANCE(@100KHz,100mV,8mA DC BIAS):
J1-J2;J3-J6;J4-J5;J7-J8: 350uH min
3.Insertion Loss:
0.3～100MHz:-1.2dB Max
4.Return Loss(dB Min.load 100Ω):
1～30MHz:-16 40MHz:-13.5
50MHz:-11.5 60～80MHz:-10
5.Crosstalk(dB Min):
30MHz:-40 60MHz:-36
100MHz:-30
6.Differential to Common Mode Rejection:
30MHz:-35dB Min 60MHz:-32dB Min
100MHz:-30dB Min
7.Isolation Voltage: 1500Vrms
8.Operating Temperature Range: 0℃～70℃.



RB1-106BAM1A Integrated Rj45 Jack, LPJG0801DNL Single Port 10/100/1000 Gigabit 0
RB1-106BAM1A Integrated Rj45 Jack, LPJG0801DNL Single Port 10/100/1000 Gigabit 1 RB1-106BAM1A Integrated Rj45 Jack, LPJG0801DNL Single Port 10/100/1000 Gigabit 2
