LINK-PP LPJG0833G4NL Cross 6605444-6 1x Gigabit Magnetics Rj45 Connector

Name: LINK-PP LPJG0833G4NL Cross 6605444-6 1x Gigabit Magnetics Rj45 Connector
Brand: LINK-PP INT'L TECHNOLOGY CO., LIMITED
SKU: 6605444-6
Price: 14.05 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: LINK-PP

Certification: UL,ROHS,Reach,ISO

Model Number: 6605444-6

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000

Price: Supportive

Packaging Details: 50pcs/tray,1200pcs/carton

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 4600K.PCS/Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                    stacked rj45 connectors, rj45 with magnetics


Specification:	6605444-6	Cross:	LPJG0833G4NL
Original Munafactuer:	LINK-PP	Lan:	Gigabit Ethernet
Indicator:	LED	Samples:	Available

Specification:	6605444-6
Cross:	LPJG0833G4NL
Original Munafactuer:	LINK-PP
Lan:	Gigabit Ethernet
Indicator:	LED
Samples:	Available

LINK-PP LPJG0833G4NL Cross 6605444-6 1x Gigabit Magnetics Rj45 Connector

1 x 10/100/1000BASE-TX Rj45 Port
LPJG0833G4NL Cross 6605444-6
IEEE 802.3ab 1000BASE-T
Rj45 Right Angle PCB Connector

ELECTRICAL SPECFICATIONS @25℃
1.Turn Ratio(±2%):
TX=1CT:1 RX=1CT:1
2.Inductance OCL:
350uH MIN @ 100KHz,0.1V,8mA DC Bias
3.Insertion Loss:
-1.0dB MAX @ 1.0-100MHz
4.Return Loss:
-18dB MIN @ 1-10MHz
-16dB MIN @ 10-30MHz
-12dB MIN @ 30-60MHz
-10dB MIN @ 60-100MHz
5.Cross talk:
-35dB MIN @ 1-30MHz
-32dB MIN @ 30-60MHz
-30dB MIN @ 60-100MHz
6.Common Mode Rejection:
-30dB MIN @ 1-100MHz
7.Hipot Test:1500Vrms MIN
8.Operating Temperature Range: 0℃ TO 70℃

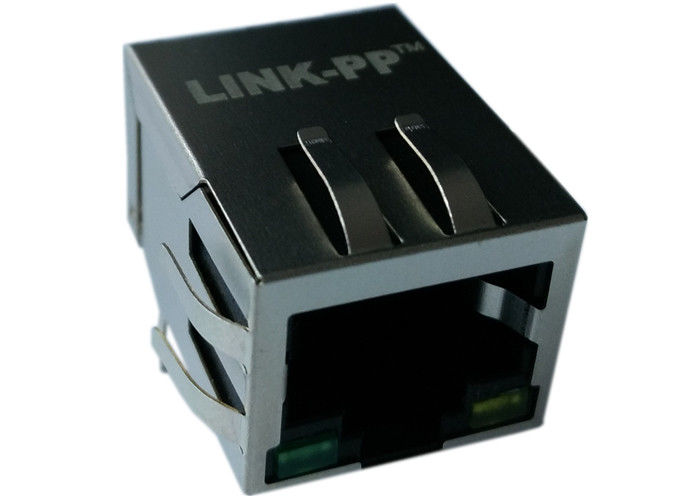

LINK-PP LPJG0833G4NL Cross 6605444-6 1x Gigabit Magnetics Rj45 Connector 0
