Product Details
Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO

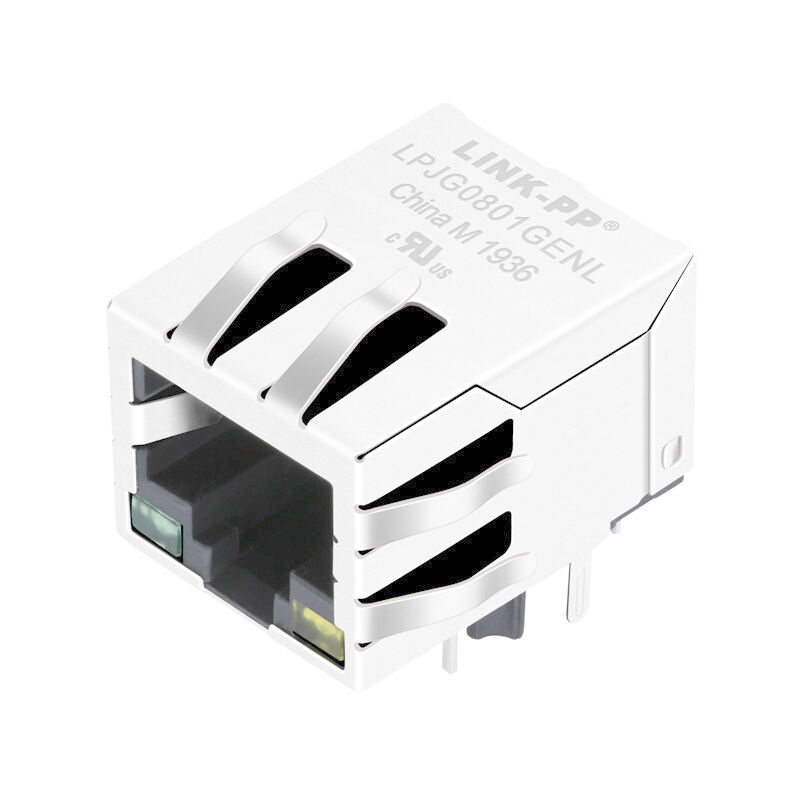

Model Number: 7499111211
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000
Price: Supportive&Discount
Packaging Details: 60 / tray,22 tray /carton, 37*30*30 cm, 10 KGS (1320 pcs)
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3000000/Month
Specification: |
7499111211 |
Cross Part: |
LPJG0801GENL |
Munafactuer: |
LINK-PP |
Ethernet: |
10/100/1000Base-T |
LEDs: |
Optional |
Samples: |
Available Free |
Specification: |
7499111211 |
Cross Part: |
LPJG0801GENL |
Munafactuer: |
LINK-PP |
Ethernet: |
10/100/1000Base-T |
LEDs: |
Optional |
Samples: |
Available Free |
| Electrical Specifications @25℃ 1.Turns Ratio(±2%): TX=1CT:1CT RX=1CT:1CT 2.OCL: 350uH Min @100KHz/0.1V With 8mA DC Bias 3.Return Loss(dB MIN): 1-30MHz:-18 30-60MHz:-16 60-80MHz:-12 80-100MHz:-10 4.Crosstalk(dB MIN): 1-30MHz:-40 30-60MHz:-35 60-100MHz:-30 5.Insertion Loss: 1-100MHz:-1.0dB MAX 6.CMR(dB MIN): 1-50MHz:-40 50-150MHz:-30 7.Hipot: 1500Vrms 8.Operating Temperature: 0℃～+70℃. |
|
|
|
