Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: RB1-215BAM1A
Payment & Shipping Terms
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.06-$3.2
Packaging Details: T&R
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
Part Number: |
RB1-215BAM1A |
Cross Part: |
LPJG0801GENL |
Munafactuer: |
LINK-PP |
Ethernet: |
10/100/1000Base-T |
LEDs: |
Green/Yellow |
Samples: |
Available Free |
Hi-pot: |
1500Vrms |
OCL: |
350uh Min |
Mechanical: |
21.25 X 15.93 X 13.30mm |
Operating Temperature: |
0 °C To 70 °C |
Part Number: |
RB1-215BAM1A |
Cross Part: |
LPJG0801GENL |
Munafactuer: |
LINK-PP |
Ethernet: |
10/100/1000Base-T |
LEDs: |
Green/Yellow |
Samples: |
Available Free |
Hi-pot: |
1500Vrms |
OCL: |
350uh Min |
Mechanical: |
21.25 X 15.93 X 13.30mm |
Operating Temperature: |
0 °C To 70 °C |

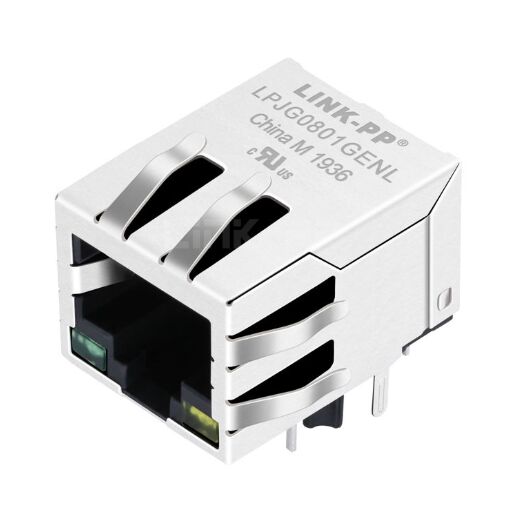

The RB1-215BAM1A 1000Base‑T RJ45 Connector is a single-port Gigabit Ethernet RJ45 MagJack with integrated magnetics, designed for 10/100/1000Base-T Ethernet networks.
These features make it ideal for high-speed Ethernet interfaces requiring reliable signal integrity and simplified PCB design.
| Parameter | Specification |
|---|---|
| Part Number | RB1-215BAM1A |
| Connector Type | RJ45 with Integrated Magnetics |
| Ethernet Speed | 10/100/1000Base-T |
| Port Configuration | 1×1 |
| Contact Positions | 10P8C |
| Orientation | Right-Angle |
| Mounting Type | Through-Hole |
| Latch Type | Tab-Down |
| LED Indicator | Optional |
| Shielding |
Optional EMI Fingers |
|
Electrical Specifications (25 °C)
1. Turns Ratio (±2%) TX = 1CT : 1CT, RX = 1CT : 1CT
2. Inductance (OCL) 350 µH Min @ 100 kHz, 100 mV, 8 mA DC Bias
3. Insertion Loss ≤ 1.0 dB (1–100 MHz)
4. Return Loss 1–30 MHz: ≥ −18 dB 30–60 MHz: ≥ −16 dB 60–80 MHz: ≥ −12 dB 80–100 MHz: ≥ −10 dB
5. Crosstalk 1–30 MHz: ≥ −40 dB 30–60 MHz: ≥ −35 dB 60–100 MHz: ≥ −30 dB
6. Common Mode Rejection 1–50 MHz: ≥ −40 dB 50–150 MHz: ≥ −30 dB
7. Isolation Voltage 1500 Vrms
|
|
|
|
|
RB1-215BAM1A is a single-port RJ45 MagJack connector with integrated magnetics designed for 10/100/1000Base-T Ethernet networks.
Integrated magnetics means the connector includes LAN transformers and filtering components, which help isolate signals and reduce electromagnetic interference.
Yes. The connector supports 10/100/1000Base-T Ethernet, enabling Gigabit-speed LAN communication.
Typical devices include:
The RB1‑215BAM1A Gigabit Ethernet RJ45 Connector provides a compact, high-performance Ethernet interface with integrated magnetics, making it an excellent solution for modern networking equipment.
With support for Gigabit Ethernet, EMI suppression, and simplified PCB design, this connector is widely adopted in network infrastructure, embedded systems, and industrial Ethernet applications.
If you are looking for high-performance RJ45 connectors with integrated magnetics, explore compatible alternatives and industrial-grade solutions at LINK-PP.
