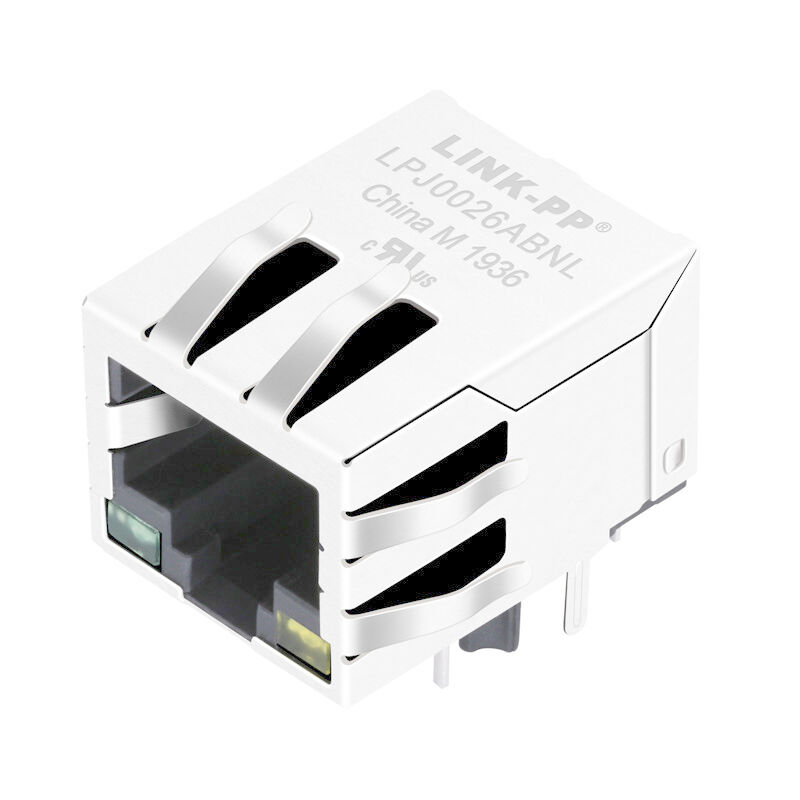

RJLD-221TC1 100BASE-TX Transmission Angled Rj45 Connector LPJ0026ABNL

Name: RJLD-221TC1 100BASE-TX Transmission Angled Rj45 Connector LPJ0026ABNL
Brand: LINK-PP
SKU: RJLD-221TC1
Price: 0.09 USD
Availability: InStock
Rating: 4.7 (197 reviews)

Product Details

Place of Origin: Guangdong,China

Brand Name: LINK-PP

Certification: UL,ROHS,Reach,ISO

Model Number: RJLD-221TC1

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/25K

Price: $0.09-$1.85

Packaging Details: 50pcs/tray,1200pcs/carton

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 250000-320000/Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                single port rj45, shielded rj45 plugs


Specification:	RJLD-221TC1	Cross Part:	LPJ0026ABNL
Munafactuer:	LINK-PP	Ethernet:	1 X 10/100 Mbit Ethernet
Turns Ratio:	1:1	Samples:	Available Free

Specification:	RJLD-221TC1
Cross Part:	LPJ0026ABNL
Munafactuer:	LINK-PP
Ethernet:	1 X 10/100 Mbit Ethernet
Turns Ratio:	1:1
Samples:	Available Free

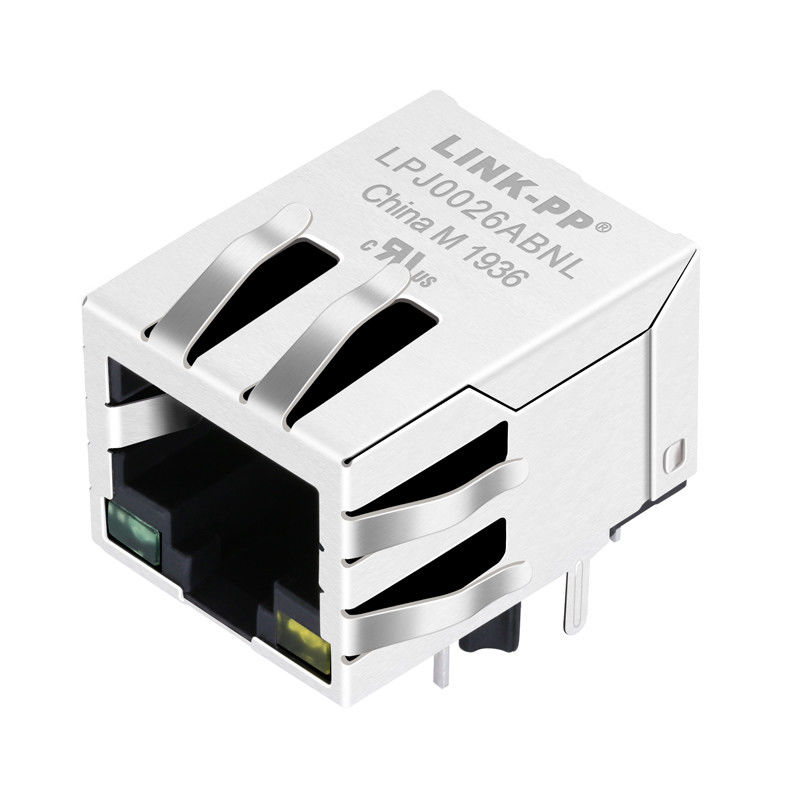

RJLD-221TC1 100BASE-TX Transmission Angled Rj45 Connector LPJ0026ABNL

Ethernet 10/100base-T Connectivity
1X rj45, INT. MAG., LED, REVERSE LATCH
RJLD-221TC1
LPJ0026ABNL Cross RJLD-221TC1
LED optional, EMI-finger Optional.

ELECTRICAL SPECFICATIONS @25℃
1.Turn Ratio(±2%):
TX=1CT:1 RX=1CT:1CT
2.Inductance OCL: 350uH MIN
@ 100KHz,0.1V,8mA DC Bias
3.Insertion Loss:
-1.0dB MAX @ 1-65MHz
4.Return Loss:
-20dB MIN @ 1-10MHz
-16dB MIN @ 10-30MHz
-12dB MIN @ 30-60MHz
-10dB MIN @ 60-100MHz
5.Cross talk:
-40dB MIN @ 1-30MHz
-35dB MIN @ 30-60MHz
-30dB MIN @ 60-100MHz
6.Common Mode Rejection:
-30dB MIN @ 1-50MHz
-20dB MIN @ 50-150MHz
7.Hipot Test: 1500Vrms MIN
8.Operating Temperature Range: 0℃ TO 70℃.
