LPJ0011GENL Cross Erni 203199 Rj45 8C8T 1x1 Integrated Magnetic LED Aligned

Name: LPJ0011GENL Cross Erni 203199 Rj45 8C8T 1x1 Integrated Magnetic LED Aligned
Brand: LINK-PP
SKU: 203199
Price: 0.05 USD
Availability: InStock
Rating: 4.6 (153 reviews)

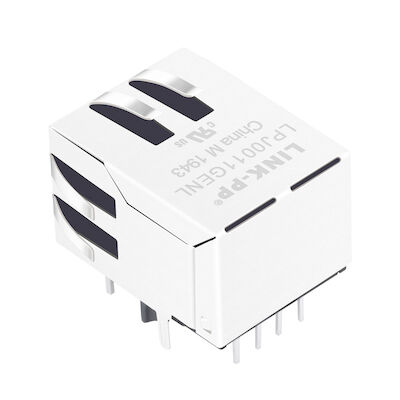

Large Image : LPJ0011GENL Cross Erni 203199 Rj45 8C8T 1x1 Integrated Magnetic LED Aligned

Product Details:

Place of Origin:	China
Brand Name:	LINK-PP
Certification:	UL,ROHS,Reach,ISO
Model Number:	203199

Payment & Shipping Terms:

Minimum Order Quantity:	50/500/1000/25K
Price:	$0.05-$1.28
Packaging Details:	50pcs/tray,1200pcs/carton
Delivery Time:	Stock
Payment Terms:	TT,NET30/60/90 Days
Supply Ability:	4200K-PCS/Month

Contact Now

Detailed Product Description

Specification:	203199	Cross Part:	LPJ0011GENL
Munafactuer:	LINK-PP	Ethernet:	1 X 10/100 Mbit
Turns Ratio:	1:1	Samples:	Available Free
High Light:	rj-45 ethernet jack , modular jacks rj45

LPJ0011GENL Cross Erni 203199 Rj45 8C8T 1x1 Integrated Magnetic LED Aligned

10/100Mbps Ethernet Port rj45
1X rj45, INT. MAG., LED, REVERSE LATCH
203199 Rj45 Mod Jack 8C8T
LPJ0011GENL Cross 203199
LED Aligned, EMI-finger Optional.

1.Turn Ratio(±2%):
TX=1CT:1

RX=1CT:1
2.Inductance OCL:
350uH MIN @ 100KHz 0.1V 8mA DC Bias
3.Insertion Loss:
-1.0dB MAX @ 1.0-100MHz
4.Return Loss:
-18dB MIN @ 1-30MHz
-15dB MIN @ 30-60MHz
-12dB MIN @ 60-80MHz
-10dB MIN @ 80-100MHz
5.Cross talk:
-40dB MIN @ 30MHz
-35dB MIN @ 60MHz
-30dB MIN @ 100MHz
6.Common Mode Rejection:
-40dB MIN @ 30MHz
-35dB MIN @ 60MHz
-30dB MIN @ 100MHz
7.Hipot: 1500Vrms

8.LED Lamp:
Wave Length:GREEN/YELLOW:570nm/590nm
Forward Voltage(Vf):
1.8V-2.6V (Test Condition: 20mA)
9.Operating Temperature Range:0℃ TO 70℃

LPJ0011GENL Cross Erni 203199 Rj45 8C8T 1x1 Integrated Magnetic LED Aligned 0
