Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: LPJE8802DNL
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.08-$1.79
Packaging Details: 60pcs/tray,or Reel Package
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 2800K-PCS/Month
Specification: |
95540-6886 |
Part Number: |
LPJE8802DNL |
Munafactuer: |
8Pin SMT |
Orientation: |
Right Angle (Side Entry) |
Style: |
Surface Mount |
Samples: |
Available Free |
Specification: |
95540-6886 |
Part Number: |
LPJE8802DNL |
Munafactuer: |
8Pin SMT |
Orientation: |
Right Angle (Side Entry) |
Style: |
Surface Mount |
Samples: |
Available Free |
|

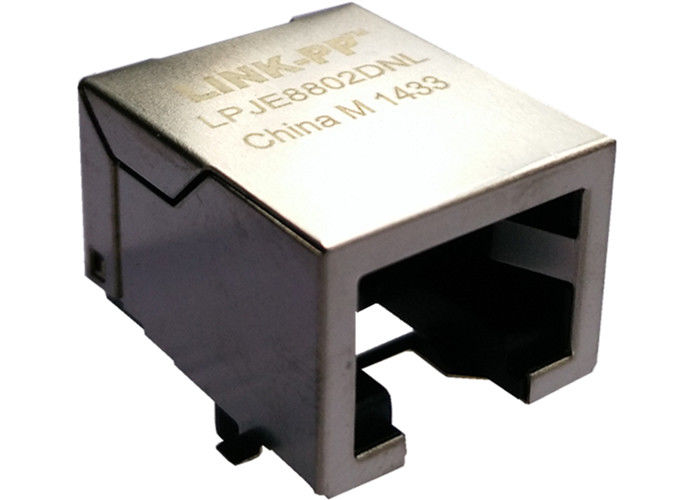

LPJE8802DNL
|
LPJE8802CNL
|
LPJE8802NNL
|
955406886
|
95540-6886
|
| RJ45 Female Connector without Integrated Magnetics,Without LED,Tab Down,RoHS | |
| LINK-PP Part Number | LPJE8802DNL |
| Application-Lan | ETHERNET(NoN PoE) |
| AutomDX | YES |
| Bst Circuit | YES |
| Configuration RX | T,C |
| Configuration TX | T,C |
| Contact Mating Area Plating | PLASTICS |
| Cores per Port | 0 |
| Diodes | NO DIODES |
| LED Option | WITHOUT LEDS |
| Latch | TAB DOWN |
| Number of Ports | 1X1 |
| PCB | FR4 |
| PCB Mount Angle | SIDE ENTRY |
| PCB Retaining Post | T POST |
| Package Height (Inches) | 0.463 |
| Package Height (mm) | 11.75 |
| Package Length (Inches) | 0.734 |
| Package Length (mm) | 18.65 |
| Package Width (Inches) | 0.620 |
| Package Width (mm) | 15.74 |
| Pin Type | THT SOLDER |
| RoHS Compliant | YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Search | YES |
| Shield EMI Tabs | WITHOUT |
| Speed | WITHOUT MAGNETICS |
| Temperature | - 40 TO + 85℃ |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
Electrical:
1.Voltage rating : 125 VAC RMS
2.Current Rating : 1.5 AMP
3.Contact resistance : 20 mΩ Max
4.Insulation resistance : 1000 MΩ Min @500V DC
5.Dielectric strength : 1000 VAC RMS 50Hz,1MIN.
MECHANICAL:
1.Housing & Insert Material : PBT UL94V-0.
2.Contact Material : Phospor bronze T=0.30mm
3.Plating :Gold Plating OVER nickel,
Gold plated on content area 3U"
4.Operating Life : 750 Cycles Min.
|
1. Available for 10/100Mbps Fast Ethernet 2. Available for 10/100/1000Mbps Gigabit Ethernet 3. Thru-Hole 4. Rj45 With Transformer 5.Low Profile 11.30mm 6. Full Datasheet
Free Samples / RoHS/Reach/UL Certificates
|
|
|
1. Available for 10/100Mbps Fast Ethernet 2. Available for 10/100/1000Mbps Gigabit Ethernet 3. Thru-Hole / DIP 4. Rj45 With Transformer 5.Low Profile 11.30mm 6. Full Datasheet
Free Samples / RoHS/Reach/UL Certificates |
|
|
1. 10/100Mbps With POE Application 2. SMD/SMT 3. Rj45 With Transformer 4. Mid-PCB Mounting 5. Full Datasheet
Free Samples / RoHS/Reach/UL Certificates
|
|
|
Others (Multiple Ports Low Profile Rj45) , 1x4 Ports Rj45 Mid PCB Jack
|
|
|
|
| For more Information, please contact us directly to satisfy your requirements to your projects. | |
