LPJ19911ADNL SMT Magjack Key Features

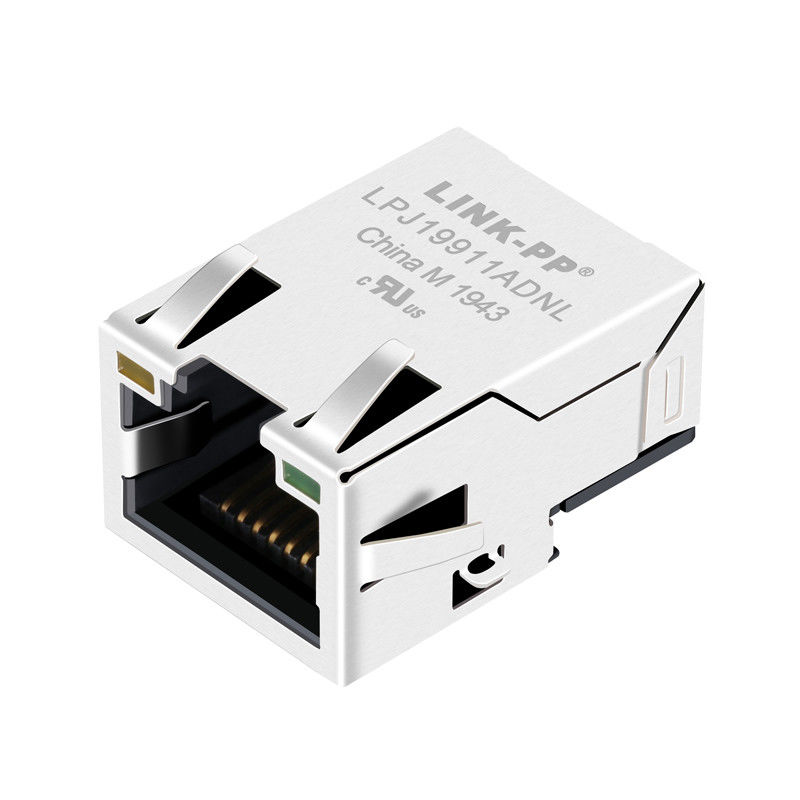

The LPJ19911ADNL is a low-profile, single-port SMT RJ45 connector with built-in 10/100BASE-T magnetics and LED indicators. It integrates common-mode choke and transformer windings (turn ratio 1CT:1CT) meeting typical Fast Ethernet isolation and coupling requirements, while the EMI spring finger shield tabs provide chassis grounding options to reduce radiated emissions. The connector is optimized for SMT reflow assembly with recommended IR reflow profile and is rated for operation from -40 °C to +85 °C, making it suitable for industrial, telecom and embedded networking applications where robust thermal performance and automated production are needed.

• Integrated magnetics for simplified PCB design and reduced BOM (1CT:1CT turn ratio).
• SMT / reflow compatible — designed for modern surface-mount assembly lines.
• 10/100BASE-T data rate; ideal for Fast Ethernet applications.
• EMI spring finger / shield tabs and LED option for EMI control and link/activity indication.
• Wide operating temperature: -40 °C to +85 °C for industrial deployments.
• Compact footprint (L × W × H front/back): 21.60 ±0.5 mm × 15.6 mm × 11.35 mm (front) / 8.9 mm (back).
• Non-PoE (no PoE on this variant) — useful for cost-sensitive or constrained power designs.
• Compatible cross-references: Pulse JXD1-1001NL, Würth 7498011122AR / 7498011122.

Technical Specifications — LPJ19911ADNL SMT RJ45 Connector

1. General / Mechanical Specifications

2. Mechanical Dimensions

3. Magnetic / Electrical Specifications (@ 25 °C)

* Return loss values are frequency-dependent; please refer to the official datasheet for the complete return loss table.

4. IR Reflow Soldering Profile (SMT)

6. Cross Reference / Compatible Parts

LPJ19911ADNL RJ45 Connector Drawing

LPJ19911ADNL Mechanical Drawing

LPJ19911ADNL Schematic Drawing

LPJ19911ADNL Recommended PCB Layout

FAQ About LPJ19911ADNL 10/100BASE-T SMT RJ45

LPJ19911ADNL is a single-port SMT RJ45 connector with integrated 10/100BASE-T magnetics, LED status, EMI spring fingers (shield tabs), and an SMT reflow-compatible footprint. Engineered for space-saving LAN interfaces on consumer, industrial and embedded PCBs, the part is designed for reliable signal integrity, wide temperature operation (-40 °C to +85 °C) and automated SMT assembly.

Q: What data rates does this connector support?

A: 10/100BASE-T (Fast Ethernet). This variant is not rated for PoE.

Q: Is this part reflow compatible?

A: Yes — designed for SMT reflow assembly. Follow the provided IR reflow profile and validate with your assembler.

Q: What temperature range can it operate in?

A: -40 °C to +85 °C (per provided specifications).

Q: Are there mechanical drawings and a footprint available?

A: Yes — include a link to the official datasheet/pdf on the product page and provide downloadable STEP/2D CAD files if available.
