2x1 Rj45 With LED LPJE106XAGNL , 1x2 Ethernet, R/A Shield Connector LPJE1063A4NL

China 2x1 Rj45 With LED LPJE106XAGNL , 1x2 Ethernet, R/A Shield Connector LPJE1063A4NL supplier
2x1 Rj45 With LED LPJE106XAGNL , 1x2 Ethernet, R/A Shield Connector LPJE1063A4NL supplier 2x1 Rj45 With LED LPJE106XAGNL , 1x2 Ethernet, R/A Shield Connector LPJE1063A4NL supplier 2x1 Rj45 With LED LPJE106XAGNL , 1x2 Ethernet, R/A Shield Connector LPJE1063A4NL supplier 2x1 Rj45 With LED LPJE106XAGNL , 1x2 Ethernet, R/A Shield Connector LPJE1063A4NL supplier

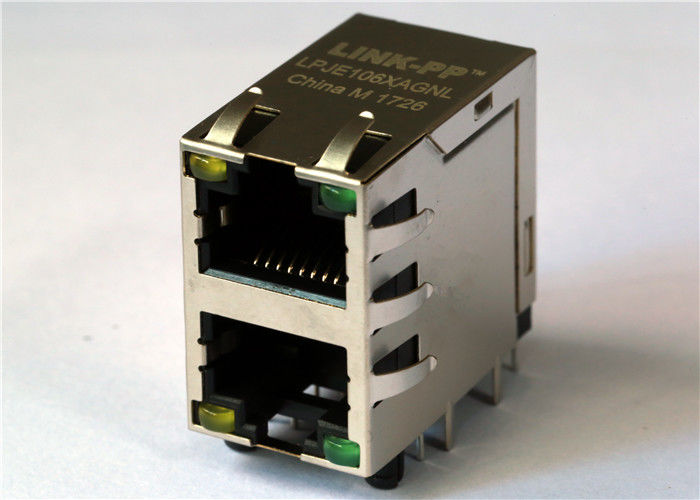

Large Image :  2x1 Rj45 With LED LPJE106XAGNL , 1x2 Ethernet, R/A Shield Connector LPJE1063A4NL

Product Details:

Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: ISO9001,SGS,UL,CE,REACH
Model Number: LPJE106XAGNL

Payment & Shipping Terms:

Minimum Order Quantity: 200/1000
Price: Supportive&Competitive
Packaging Details: 30PCS/Try,18Trays/Carton=540PCS=37*30*30=11KG
Delivery Time: Stock or 4 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 3000000/Month
Contact Now
Detailed Product Description
Part No: LPJE106XAGNL Specification: LPJE106 Series
Ethernet: Cat5/5e Mounting: Thru-hole
Termination: Solder Samples: Available

2x1 Rj45 With LED LPJE106XAGNL , 1x2 Ethernet, R/A Shield Connector LPJE1063A4NL
  • 2x Rj45 With LED 8P8C
  • LPJE1063A4NL
  • R/A Shield Connector
  • 1u,3u,6u,15,30u,50u Gold Plating
  • 1x2 Port Ethernet Port
  • LPJE106XAGNL



NOTES:
MATERIAL:
1.HOUSING MATERIAL :GLASS FILLED POL YESTER UL94V-O.
2.CONTACT MATERIAL :PHISPHOR B RONZE ø0.46MM.
3.PLATING :GOLD PLATING OVER NICKEL.
4.SHIEL :0.20 THICKNESS COPPER ALLOY WITH
NICKEL PLATED.
ELECTRICAL:
1.VOLTAGE RATING :125 VAC RMS.
2.CURRENT RATING :1.5 AMP.
3.CONTACT RESISTANCE:30 MILLIOHMS MAX.
4.INSULATION RESISTANCE:500 MEGOHMS MIN @ 500V DC.
5.DIELECTRIC WITHSTANDING RESISTANCE: 1000V AC RMS 50Hz.1MIN
MECHANICAL:
1.DURRABILITY :750 CYCLES MIN.
2.PCB RETENTION PRE-SOLDER : 1 LB MIN.
ENVIRONMENTAL:
1.STORAGE : -40℃~+85℃
2.OPERATION : -40℃~+85℃
2x1 Rj45 With LED LPJE106XAGNL , 1x2 Ethernet, R/A Shield Connector LPJE1063A4NL
2x1 Rj45 With LED LPJE106XAGNL , 1x2 Ethernet, R/A Shield Connector LPJE1063A4NL 2x1 Rj45 With LED LPJE106XAGNL , 1x2 Ethernet, R/A Shield Connector LPJE1063A4NL



2x1 Stacked Rj45 Series
LPJE106XDNL LPJE106XAHNL LPJE106XA65NL
LPJE106XA4NL LPJE106XA55NL LPJE106XA84NL
LPJE106XCNL LPJE106XASNL LPJE106XA85NL
LPJE1060CNL LPJE106XB33NL LPJE106XA33NL
LPJE106XAGNL LPJE106XAWNL LPJE1064AHNL
