Product Details
Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: LPJE107XAGNL
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/60K
Price: $0.11-$24
Packaging Details: Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 180K/Month
Part No: |
LPJE107XAGNL |
Specification: |
LPJE107 Series |
Ethernet: |
Cat5/5e |
Mounting: |
Thru-hole |
Termination: |
Solder |
Samples: |
Available |
Part No: |
LPJE107XAGNL |
Specification: |
LPJE107 Series |
Ethernet: |
Cat5/5e |
Mounting: |
Thru-hole |
Termination: |
Solder |
Samples: |
Available |
| NOTES: MACHANICAL: 1.HOUSING MATERIAL :GLASS FILLED POLYESTER OR HIGH TEMP. UL94V-0. 2.CONTACT MATERIAL :PHOSPHOR BRONZE t=0.35mm. 3.PLATING :CONTACT AREA-SELECTIVE GOLD PLATING. TAILS-PLATED TIN OVER NICKEL. 4.OPERATING LIFE :750 CYCLES MIN 5.PCB RETENTION PRE-SOLDER :1 LB MIN 6.PCB RETENTION POST-SOLDER :10 LBS MIM 7.LED SIZE :3.2*2.0*4.0*P=2.29mm ELECTRICAL: 1.VOLTAGE RATING :125VAC RMS. 2.CURRENT RATING :1.5AMP. 3.CONTACT RESISTANCE :50 MILLIOHMS MAX. 4.INSULATION RESISTANCE :1000MEGOHMS MIN @ 500V DC. 5.DIELECTRIC STRENGTH :1000V AC RMS 60Hz. 1MIN. ENVIRONMENTAL: 1.STORAGE :-40℃ +85℃. 2.OPERATION :-40℃ +85℃. MATES WITH MODULAR PLUG CONFORMING TO FCC PART 68, SUBPART F. |
|
|

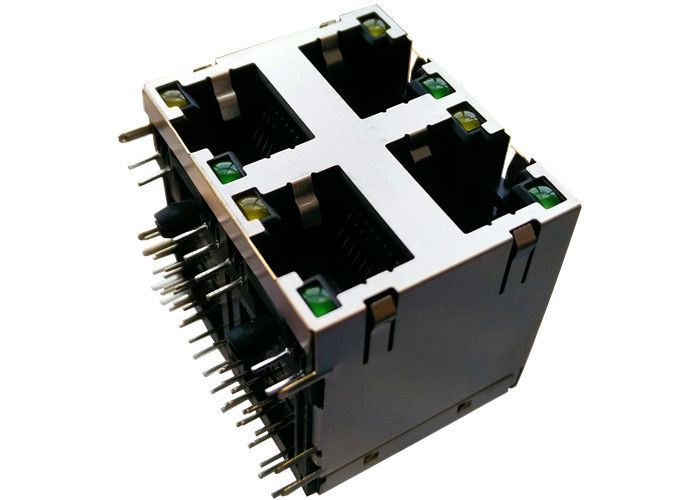

| LINK-PP 2x2 Rj45 Series Available Part | ||
| LPJE107XAGNL | LPJE107XDNL | LPJE107XAWNL |
| LPJE107CNL | LPJE1075CNL | LPJE107XAHNL |
| LPJE107X-2CNL | LPJE107XBWNL | LPJE107XCNL |
