Product Details
Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: LPJE107XCNL
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/60K
Price: $0.11-$24
Packaging Details: Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 180K/Month
Part No: |
LPJE107XCNL |
Specification: |
LPJE107 Series |
Ethernet: |
Cat5/5e |
Mounting: |
Thru-hole |
Termination: |
Solder |
Samples: |
Available |
Part No: |
LPJE107XCNL |
Specification: |
LPJE107 Series |
Ethernet: |
Cat5/5e |
Mounting: |
Thru-hole |
Termination: |
Solder |
Samples: |
Available |
| NOTES: MATERIAL: 1.HOUSING MATERIAL :GLASS FILLED POL YESTER UL94V-O. 2.CONTACT MATERIAL :PHISPHOR B RONZE Ø0.46MM. 3.PLATING :GOLD PLATING OVER NICKEL. 4.SHIEL :0.20 THICKNESS COPPER ALLOY WITH NICKEL PLATED. ELECTRICAL: 1.VOLTAGE RATING :125 VAC RMS. 2.CURRENT RATING :1.5 AMP. 3.CONTACT RESISTANCE:30 MILLIOHMS MAX. 4.INSULATION RESISTANCE:500 MEGOHMS MIN @ 500V DC. 5.DIELECTRIC WITHSTANDING RESISTANCE: 1000V AC RMS 50Hz.1MIN MECHANICAL: 1.DURRABILITY :500 CYCLES MIN. 2.PCB RETENTION PRE-SOLDER : 1 LB MIN. ENVIRONMENTAL: 1.STORAGE : -40℃～+85℃ 2.OPERATION : -40℃～+85℃ |
|
|

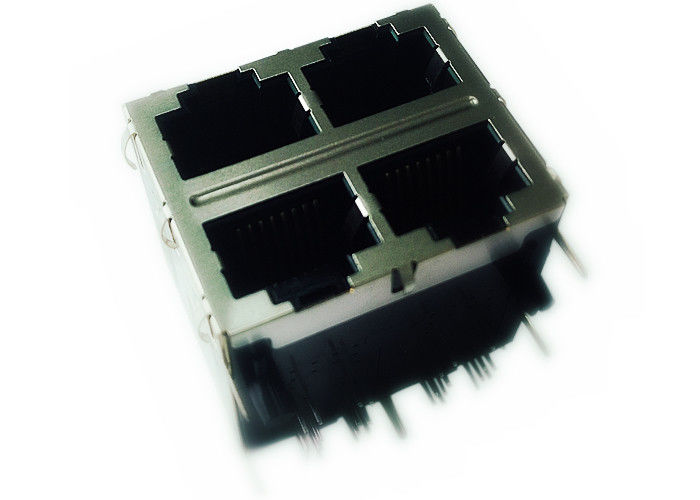

| LINK-PP 2x2 Rj45 Series Available Part | ||
| LPJE107XAGNL | LPJE107XDNL | LPJE107XAWNL |
| LPJE107CNL | LPJE1075CNL | LPJE107XAHNL |
| LPJE107X-2CNL | LPJE107XBWNL | LPJE107XCNL |
