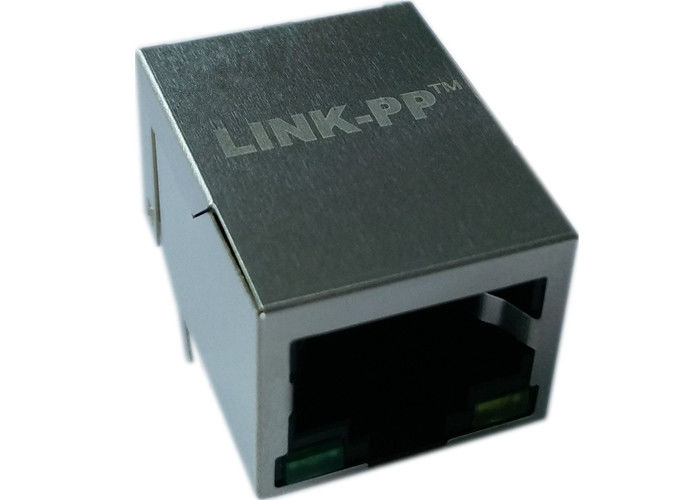

LPJ0037FBNL RJ45 Connector with 10/100Base -TX Integrated Magnetic

Product Details

Place of Origin: China

Brand Name: LINK-PP

Certification: UL,ROHS,Reach,ISO

Model Number: LPJ0037FBNL

Payment & Shipping Terms

Minimum Order Quantity: 10pcs

Price: 0.3-0.86$

Packaging Details: 50pcs/tray,1200pcs/carton

Delivery Time: 2-3weeks

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 6500K.PCS/Month

Get Best Price
Highlight:

100Base -TX RJ45 with Magnetics

,

1X1 RJ45 Magnetic Jack

,

THT Integrated Magnetics RJ45

Number Of Ports:
1X1
LED Indicator:
GREEN/YELLOW
Latch:
TAB DOWN
Shield EMI Tabs:
WITHOUT
Mounting:
THT
Speed:
10/100 Base-T
Height:
13.30mm
Length:
21.25mm
Width:
15.93mm
PoE:
NoN PoE
Number Of Ports:
1X1
LED Indicator:
GREEN/YELLOW
Latch:
TAB DOWN
Shield EMI Tabs:
WITHOUT
Mounting:
THT
Speed:
10/100 Base-T
Height:
13.30mm
Length:
21.25mm
Width:
15.93mm
PoE:
NoN PoE
LPJ0037FBNL RJ45 Connector with 10/100Base -TX Integrated Magnetic



Electrical Specifications @ 25℃
LINK-PP Part Number   LPJ0037FBNL
Turns Ratio(±2%)

  TX=1CT:1CT

  RX=1CT:1CT

Inductance OCL   350uH min @100KHz, 0.1V, 8mA DC Bias
Insertion Loss   -1.0dB Max @ 1~65MHz
Return Loss

  -20dB Min @ 1~10MHz

  -16dB Min @ 10~30MHz

  -12dB Min @ 30~60MHz

  -10dB Min @ 60~100MHz

Cross talk

  -40dB Min @ 1~30MHz

  -35dB Min @ 30~60MHz
  -30dB Min @ 60~100MHz

Common Mode Rejection   -30dB Min @ 1~50MHz
  -20dB Min @ 50~100MHz
Hipot Test   1500Vrms Min
Operating Temperature   0℃~70℃



NOTES:


1. Designed to support application,such as SOH0(ADSLmodems),LAN-on-Motherboard(LOM),hub and Switches.
2. Meets IEEE802.3 specification.
3. Connector Materials:
Housing: Thermoplastic PBT+30%G.F UL94V-0
Contact: Phosphor BronzeC5210R-EH Thickness=0.35mm
Pins: Brass C2680R-H Thickness=0.35mm
Shield: SUS 201-1/2H Thickness=0.2mm
Contact plating: Gold 6 micro-inches min.In contact area.
4. Wave solder tip temperature:265℃ Max, 5 Sec.
5. UL Certification: File Number E484635.



LPJ0037FBNL RJ45 Connector Datasheet:

LPJ0037FBNL.pdf


 LPJ0037FBNL RJ45 Connector with 10/100Base -TX Integrated Magnetic 0LPJ0037FBNL RJ45 Connector with 10/100Base -TX Integrated Magnetic 1

LPJ0037FBNL RJ45 Connector with 10/100Base -TX Integrated Magnetic 2
