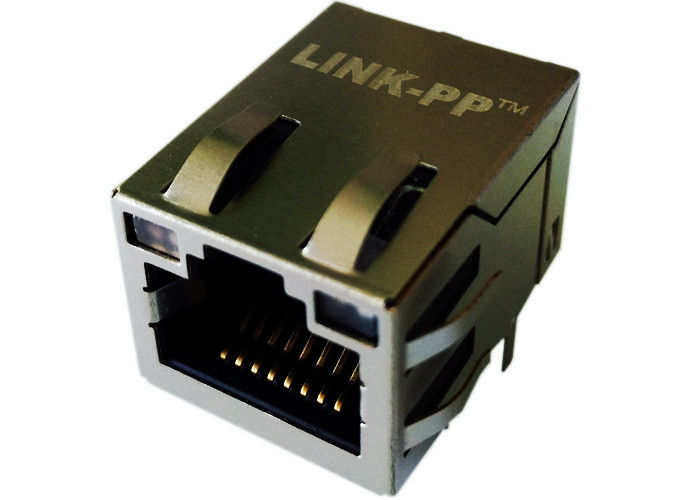

JG2014A61R Magnetic RJ45 Jack 10/100/1000Mbps Female Connectors LINK-PP

Name: JG2014A61R Magnetic RJ45 Jack 10/100/1000Mbps Female Connectors LINK-PP
Brand: LINK-PP INT'L TECHNOLOGY CO., LIMITED
SKU: JG2014A61R
Price: 14.05 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: LINK-PP

Certification: UL,ROHS,Reach,ISO

Model Number: JG2014A61R

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000

Price: Supportive

Packaging Details: 50pcs/tray,1200pcs/carton

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 4600K.PCS/Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                    stacked rj45 connectors, rj45 magnetic jack


Specification:	JG2014A61R	Part No:	JG2014A61R
Ethernet:	Gigabit Lan	Turn Ratio:	1:1
Mounting:	90 Degree Shield	Samples:	Available

Specification:	JG2014A61R
Part No:	JG2014A61R
Ethernet:	Gigabit Lan
Turn Ratio:	1:1
Mounting:	90 Degree Shield
Samples:	Available

JG2014A61R Magnetic RJ45 Jack 10/100/1000Mbps Female Connectors LINK-PP

Ethernet rj-45 Port compatible With 10/100/1000mbps
LINK-PP JG2014A61R Rj45 Gigabit Connectors
1xRj45 Ethernet Port Latch-up Model

Electrical Specifications @25℃
1.Impedance: 100 ohms
2.OCL: 350uH Min
@100KHz,0.1Vrms,8mADC BIAS
3.Turns Ratio: 1∶1
4.Insertion Loss:
0.5-100MHz:-1.1dB Max
5.Return Loss(dB Min):
0.5-40MHz:-18
40.1-100MHz:-12-20LOG(f/50)
6.Crosstalk(dB Min):
0.5-40MHz:-35
40.1-100MHz:-33-20LOG(f/50)
7.Common Mode Rejection Ratio:
0.5-100MHz:-30 dB Min
8.Isolation Voltage: 1500Vrms Min
9.Operating Temperature: 0℃～70℃.

JG2014A61R Magnetic RJ45 Jack 10/100/1000Mbps Female Connectors LINK-PP 0
