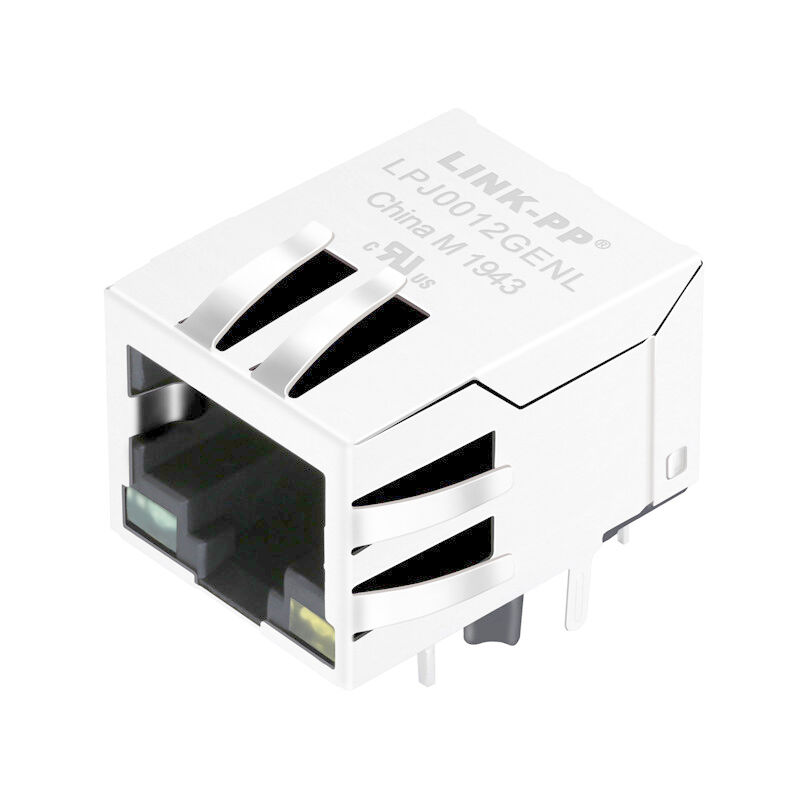

LPJ0012GENL RJ45 Single Port Built-in Magnetic Inside 10/100Mbps Ethernet

Name: LPJ0012GENL RJ45 Single Port Built-in Magnetic Inside 10/100Mbps Ethernet
Brand: LINK-PP INT'L TECHNOLOGY CO., LIMITED
SKU: LPJ0012GENL
Price: 0.09 USD
Availability: InStock

Product Details

Place of Origin: Guangdong,China

Brand Name: LINK-PP

Certification: UL,ROHS,Reach,ISO

Model Number: LPJ0012GENL

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/25K

Price: $0.09-$1.85

Packaging Details: 50pcs/tray,1200pcs/carton

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 250000-320000/Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                    rj45 smd connector, shielded rj45 plugs


Specification:	LPJ0012GENL	Part No:	LPJ0012GENL
Ethernet:	10/100Mbps Power Ethernet	Turn Ratio:	1CT:1CT
Mounting:	Right Angle 90 Degree	Samples:	Available

Specification:	LPJ0012GENL
Part No:	LPJ0012GENL
Ethernet:	10/100Mbps Power Ethernet
Turn Ratio:	1CT:1CT
Mounting:	Right Angle 90 Degree
Samples:	Available

LPJ0012GENL RJ45 Single Port Built-in Magnetic Inside 10/100Mbps Ethernet

LPJ0012GENL LINk-PP Rj45 Fast Ethernet With Transformer
Angled Rj45 Connector 10/100base-tx Ethernet
Telecom transformers and RJ45 modules
LED Indicator Flexible Design

ELECTRICAL SPECFICATIONS @25℃
1.Turn Ratio(%%P2%):
TX=1CT:1CT RX=1CT:1CT
2.Inductance OCL: 350uH MIN
@ 100KHz/0.1V 8mA DC Bias
3.Insertion Loss:
1.0-100MHz:-1.0dB MAX
4.Return Loss(dB MIN):
1-30MHz: -18 30-60MHz:-15
60-80MHz: -12 80-100MHz:-10
5.Cross talk(dB MIN):
30MHz: -40 60MHz: -35
100MHz:-30
6.Common Mode Rejection(dB MIN):
30MHz: -40 60MHz: -35
100MHz:-30
7.Hipot Test: 1500Vrms
8.Operating Temperature Range: 0℃ TO 70℃

LPJ0012GENL RJ45 Single Port Built-in Magnetic Inside 10/100Mbps Ethernet 0

LPJ0012GENL RJ45 Single Port Built-in Magnetic Inside 10/100Mbps Ethernet 2
