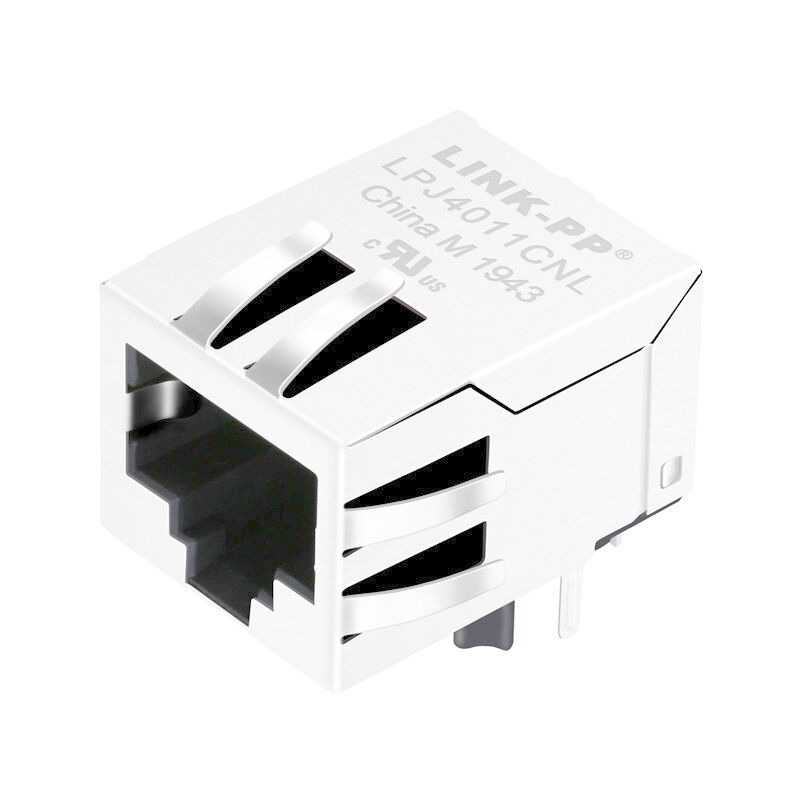

LPJ4011CNL RJ45 Single Port 1x 10/100Mbps Ethernet Connector

Name: LPJ4011CNL RJ45 Single Port 1x 10/100Mbps Ethernet Connector
Brand: LINK-PP
SKU: LPJ4011CNL
Price: 0.09 USD
Availability: InStock
Rating: 4.7 (172 reviews)

Product Details

Place of Origin: Guangdong,China

Brand Name: LINK-PP

Certification: UL,ROHS,Reach,ISO

Model Number: LPJ4011CNL

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/25K

Price: $0.09-$1.85

Packaging Details: 50pcs/tray,1200pcs/carton

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 250000-320000/Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                single port rj45, rj45 smd connector


Specification:	LPJ4011CNL	Part No:	LPJ4011CNL
Ethernet:	10/100Mbps Lan	Turn Ratio:	1CT:1CT
Mounting:	Right Angle 90 Degree	Samples:	Available

Specification:	LPJ4011CNL
Part No:	LPJ4011CNL
Ethernet:	10/100Mbps Lan
Turn Ratio:	1CT:1CT
Mounting:	Right Angle 90 Degree
Samples:	Available

LPJ4011CNL RJ45 Single Port 1x 10/100Mbps Ethernet Connector

LPJ4011CNL RJ45 1x 10/100Mbps Ethernet Latch-down
Angled Rj45 Connector 10/100base-tx Ethernet
Telecom transformers and RJ45 modules
Without LED Indicator

Electrical Specifications @25℃
1.Turns Ratio:
TX=1CT:1CT

RX=1CT:1CT
2.Inductance OCL: 350uH min
@100KHz,100mV,8mAdc.
3.Insertion Loss:
1-100MHz:-1.0dB Max
4.Return Loss(dB Min):
1-30MHz:-16
30-60MHz:-[16-20 log(f/30MHz)]
60-80MHz:-10
5.Crosstalk(dB Min):
1-60MHz:-40
60-100MHz:-38
6.Isolation Voltage: 1500Vrms
7.Operating Temperature:-40℃～+85℃.

LPJ4011CNL RJ45 Single Port 1x 10/100Mbps Ethernet Connector 0
