LPJ4012GDNL RJ45 Magnetic 1x10/100Mbps, Right Angle Shield W/LED

Name: LPJ4012GDNL RJ45 Magnetic 1x10/100Mbps, Right Angle Shield W/LED
Brand: LINK-PP INT'L TECHNOLOGY CO., LIMITED
SKU: LPJ4012GDNL
Price: 0.09 USD
Availability: InStock

Product Details

Place of Origin: Guangdong,China

Brand Name: LINK-PP

Certification: UL,ROHS,Reach,ISO

Model Number: LPJ4012GDNL

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/25K

Price: $0.09-$1.85

Packaging Details: 50pcs/tray,1200pcs/carton

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 250000-320000/Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                    single port rj45, rj45 smd connector


Specification:	LPJ4012GDNL	Part No:	LPJ4012GDNL
Ethernet:	10/100Mbps	Turn Ratio:	1CT:1CT
Mounting:	Right Angle 90 Degree	Samples:	Available

Specification:	LPJ4012GDNL
Part No:	LPJ4012GDNL
Ethernet:	10/100Mbps
Turn Ratio:	1CT:1CT
Mounting:	Right Angle 90 Degree
Samples:	Available

LPJ4012GDNL RJ45 Magnetic 1x10/100Mbps, Right Angle Shield W/LED

LPJ4012GDNL Rj45 PCB Connector
10/100Mbps Ethernet Port
Lan Connectors Rj45 With Led Activity
Fast Jack Rj45 Latch-down Model

ELECTRICAL SPECFICATIONS @25℃
1.Turn Ratio(±2%):
TX=1CT:1CT RX=1CT:1CT
2.Inductance OCL: 350uH MIN
@100KHz/0.1V 8mA DC Bias
3.Insertion Loss:
-1dB MAX @ 1-100MHz
4.Return Loss:
-18dB MIN @ 1-30MHz
-15dB MIN @ 30-60MHz
-12dB MIN @ 60-80MHz
-10dB MIN @ 80-100MHz
5.Cross talk:
-40dB MIN @ 30MHz
-35dB MIN @ 60MHz
-30dB MIN @ 100MHz
6.Common Mode Rejection:
-40dB MIN @ 30MHz
-35dB MIN @ 60MHz
-30dB MIN @ 100MHz
7.Hipot Test: 1500Vrms
8.Operating Temperature Range: -40℃ TO +85℃

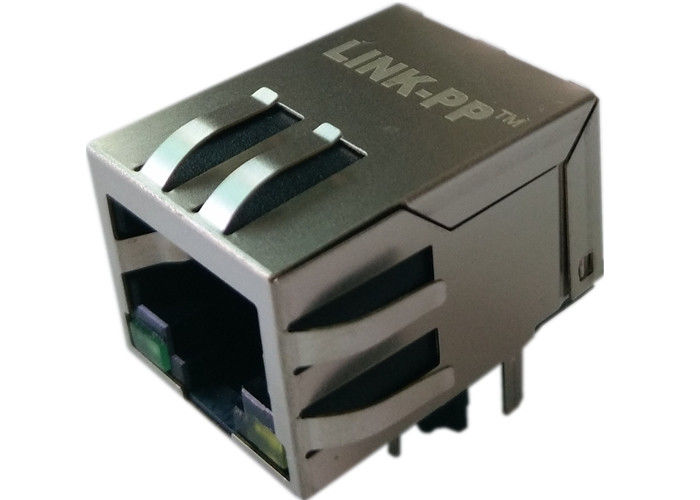

LPJ4012GDNL RJ45 Magnetic 1x10/100Mbps, Right Angle Shield W/LED 0
