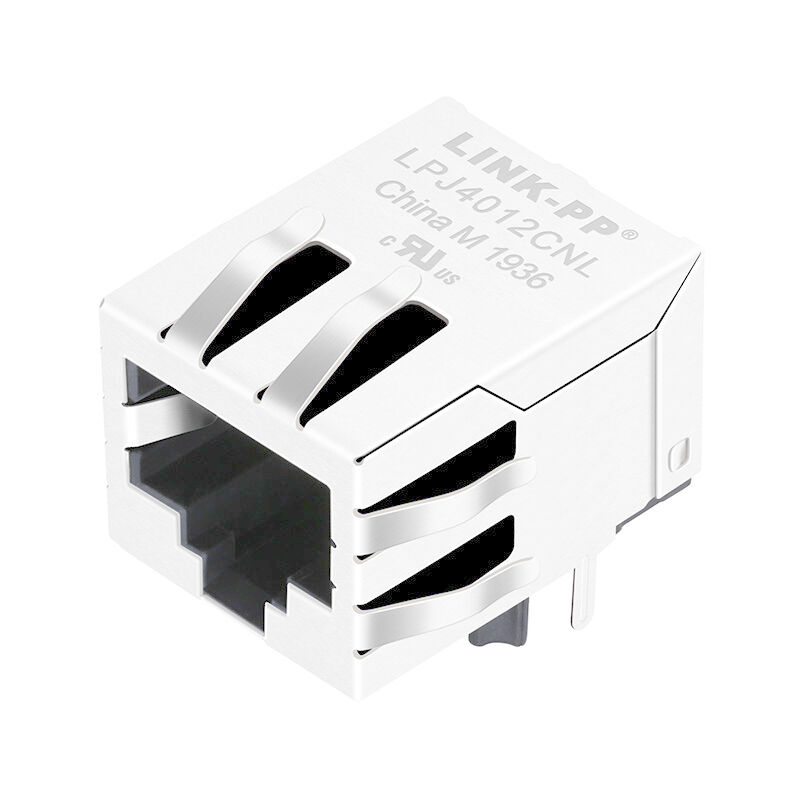

5-2301994-4 Industrial RJ45 Magjack With Integrated Magnetics

Name: 5-2301994-4 Industrial RJ45 Magjack With Integrated Magnetics
Brand: LINK-PP INT'L TECHNOLOGY CO., LIMITED
SKU: 5-2301994-4（LPJ4012CNL）
Price: 0.09 USD
Availability: InStock

Product Details

Place of Origin: Guangdong,China

Brand Name: LINK-PP

Certification: UL,ROHS,Reach,ISO

Model Number: 5-2301994-4（LPJ4012CNL）

Payment & Shipping Terms

Minimum Order Quantity: Free Samples Available

Price: $0.09-$1.85

Packaging Details: 50pcs/tray,1200pcs/carton

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 250000-320000/Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                            5-2301994-4, 100Mbps Industrial RJ45 Magjack, 5-2301994-4 Single Port RJ45 Connector


Type:	Single Port RJ45 Connector	Port Matrix Configuration:	1 X 1
Data Rate:	10/100 Mb/s	Shielded:	Yes
PCB Mount Orientation:	Right Angle	UL Flammability Rating:	UL 94V-0
Performance Category:	Cat 5

Type:	Single Port RJ45 Connector
Port Matrix Configuration:	1 X 1
Data Rate:	10/100 Mb/s
Shielded:	Yes
PCB Mount Orientation:	Right Angle
UL Flammability Rating:	UL 94V-0
Performance Category:	Cat 5

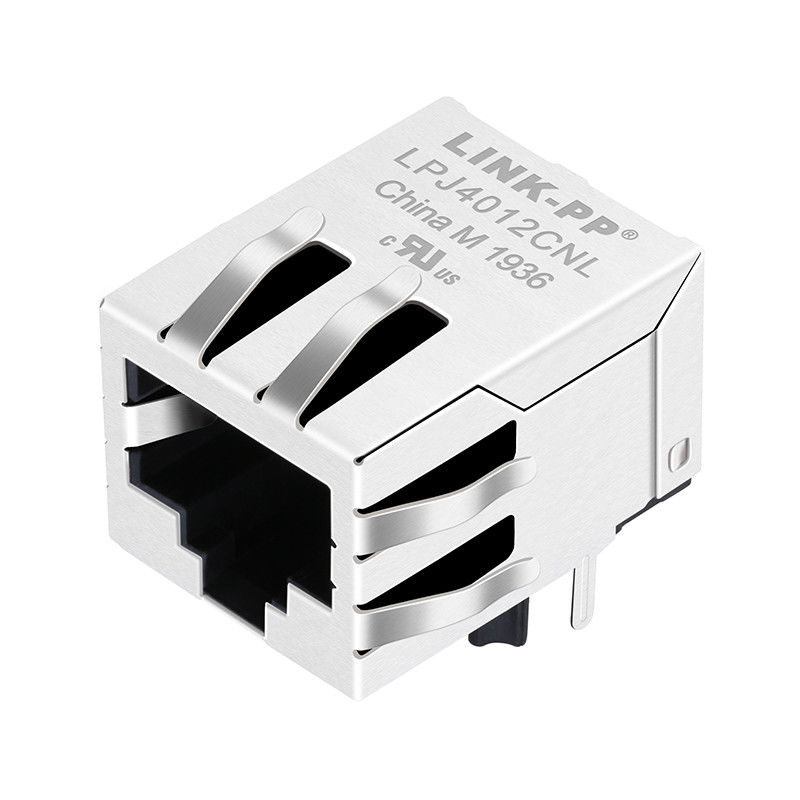

5-2301994-4 Industrial RJ45 Magjack With Integrated Magnetics

Features of 5-2301994-4 Single Port RJ45 Connector:

1. Product Type Features

Modular Jack & Plug Interface Type: RJ45 with Integrated Magnetics
Modular Connector Style: Jack
Grounding Options: PCB and Panel Ground
Connector & Contact Terminates To: Printed Circuit Board

2. Configuration Features

Indicator Type: No LEDs
Port Configuration : 1 x 1 Single Port
Connector Contact Density: Standard
Number of Positions: 8
Number of Loaded Positions: 8
PCB Mount Orientation: Right Angle
Number of PCB Ground Tabs: 2
Number of Panel Ground Tabs: 6
Panel Ground Location: Top and Side

3. Body Features

Shield Material: Brass
Shield Plating Material: Nickel
Modular Jack Latch Orientation: Standard - Latch Down
Connector Profile: Standard
PCB Ground Tab Location: 3.05 mm [ .12 in ]
Shield Plating Finish: Matte
Insulator Material : LCP
PCB Retention Feature Material: LCP

4. Contact Features

PCB Contact Termination Area Plating Material: Tin
Contact Underplating Material: Nickel
PCB Contact Termination Area Plating Material Finish: Matte
Contact Mating Area Plating Material: Gold
Contact Base Material: Copper Alloy
Contact Mating Area Plating Material Thickness: .76 µm [ 30 µin ]

5. Termination Features

Termination Method: Through Hole - Solder

6. Housing Features

Mating Entry Location: Side
Housing Color: Black
Housing Material: LCP (Liquid Crystal Polymer)

5-2301994-4(LPJ4012CNL)Specifications and Datasheet:

ELECTRICAL SPECFICATIONS @25℃
1.Turn Ratio(±2%):
TX=1CT:1CT RX=1CT:1CT
2. Inductance OCL: 350uH MIN
@100KHz/0.1V 8mA DC Bias
3. Insertion Loss:
-1.0dB MAX @ 1.0-100MHz
4. Return Loss:
-18dB MIN @ 1-30MHz
-15dB MIN @ 30-60MHz
-12dB MIN @ 60-80MHz
-10dB MIN @ 80-100MHz
5. Cross talk:
-40dB MIN @ 30MHz
-35dB MIN @ 60MHz
-30dB MIN @ 100MHz
6. Common Mode Rejection:
-40dB MIN @ 30MHz
-35dB MIN @ 60MHz
-30dB MIN @ 100MHz
7. Hipot Test: 1500Vrms
8. Operating Temperature Range: -40℃ TO +85℃

Suggested PCB Layout:

5-2301994-4 Industrial RJ45 Magjack With Integrated Magnetics 0

Schematic

5-2301994-4 Industrial RJ45 Magjack With Integrated Magnetics 1

Mechanical

5-2301994-4 Industrial RJ45 Magjack With Integrated Magnetics 2
