LPJG27011AENL 2x2 Gigabit Power Over Ethernet+ Rj45 Magnetic Jack IEEE802.3at

Name: LPJG27011AENL 2x2 Gigabit Power Over Ethernet+ Rj45 Magnetic Jack IEEE802.3at
Brand: LINK-PP
SKU: LPJG27011AENL
Price: 0.11 USD
Availability: InStock
Rating: 4.5 (113 reviews)

Product Details

Place of Origin: GuangDong, China

Brand Name: LINK-PP

Certification: UL,RoHS,Reach,ISO

Model Number: LPJG27011AENL

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/60K

Price: $0.11-$24

Packaging Details: Tray

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 180K/Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                stacked rj45 connectors, modular jacks rj45


Part No:	LPJG27011AENL	Specification:	LPJG27011AENL
Ethernet:	4x10/100/1000mbps Power	Mounting:	Thru-hole
Termination:	Solder	Samples:	Available

Part No:	LPJG27011AENL
Specification:	LPJG27011AENL
Ethernet:	4x10/100/1000mbps Power
Mounting:	Thru-hole
Termination:	Solder
Samples:	Available

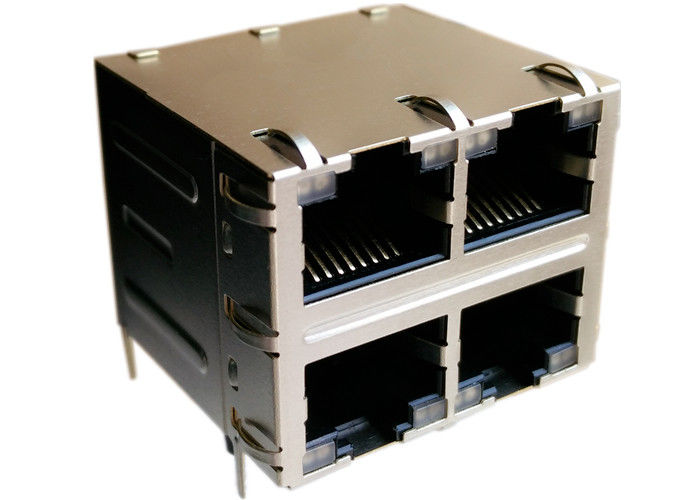

LPJG27011AENL 2x2 Gigabit Power Over Ethernet+ Rj45 Magnetic Jack IEEE802.3at

LPJG27011AENL 2x2 Gigabit Power Over Ethernet+ Rj45 Magnetic Jack IEEE802.3at

4x Magnetic Rj45 Gigabit Ethernet
LPJG27011AENL # LINK-PP Rj45 10/100/1000 Full Power Over Ethernet Plus
R/A Shield Connector POE+ Stacked RJ45
6u,15,30u,50u Gold Plating
2x2 Port Ethernet Rj-45 Port

1.Turns Ratio(±2%):

1CT∶1CT
2.Inductance: 350uH Min
@0.1MHz,0.1V,8mA DC Bias
3.Insertion Loss:
1-100MHz:-1.0dB Max
4.Return Loss(dB Min):
1-30MHz:-18 30-60MHz:-16
60-100MHz:-12
5.Crosstalk(dB Typ):
1-30MHz:-40 30-60MHz:-35
60-100MHz:-30
6.Common to Mode Rejection(dB Typ):
1-50MHz:-30 50-150MHz:-20
7.Hipot: 1500Vrms
8.Operating Temperature: -40℃～+85℃.
