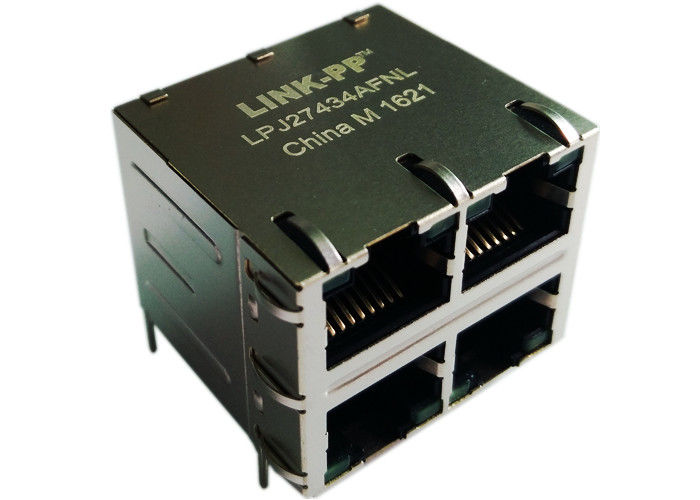

LPJ27434AFNL Stacked 2x2 RJ45 Cross XMH-2216D3042-1 Connector 4x10/100Mbps

Name: LPJ27434AFNL Stacked 2x2 RJ45 Cross XMH-2216D3042-1 Connector 4x10/100Mbps
Brand: LINK-PP
SKU: LPJ27434AFNL
Price: 0.11 USD
Availability: InStock
Rating: 4.5 (150 reviews)

Product Details

Place of Origin: GuangDong, China

Brand Name: LINK-PP

Certification: UL,RoHS,Reach,ISO

Model Number: LPJ27434AFNL

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/60K

Price: $0.11-$24

Packaging Details: Tray

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 180K/Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                stacked rj45 connectors, modular jacks rj45


Part No:	LPJ27434AFNL	Specification:	XMH-2216D3042-1
Ethernet:	4x10/100Mbps	Mounting:	Thru-hole
Termination:	Solder	Samples:	Available

Part No:	LPJ27434AFNL
Specification:	XMH-2216D3042-1
Ethernet:	4x10/100Mbps
Mounting:	Thru-hole
Termination:	Solder
Samples:	Available

LPJ27434AFNL Stacked 2x2 RJ45 Cross XMH-2216D3042-1 Connector 4x10/100Mbps

LPJ27434AFNL Stacked 2x2 RJ45 Cross XMH-2216D3042-1 Connector 4x10/100Mbps

4x Rj45 With LED
LPJ27434AFNL PHY Interface With Rj45 Magnetics
Cross XMH-2216D3042-1 Specification
R/A Shield Connector
2x2 Port Ethernet Magnetic Connectors Rj-45

1.Turns Ratio(± 2%): (P1-P3):(J1-J2)=1:1 (P4-P6):(J3-J6)=1:1 2.Inductance: 350uH MIN @0.1V,0.1MHz,8mA DC Bias 3.Insertion Loss: 0.1MHz-100MHz:-1.2dB max 4.Return Loss: 1MHz-30MHz:-18dB min 30MHz-80MHz:-12dB min 5.Cross talk: 1MHz-100MHz:-40dB 6.Common to Mode Rejection 30MHz-100MHz:-35dB 7.Hipot: 1500Vrms 8.Operating Temperature: -40℃～+85℃.

LINK-PP 2x2 Rj45 Magnetic jack Available Part
LPJ27002CNL	LPJ27312A43NL	LPJ27401ADNL
LPJ27217CNL	LPJ27849CNL	LPJ27892AWNL
LPJE107X-2CNL	LPJG27331CNL	LPJG27991A47NL
