Product Details
Place of Origin: China

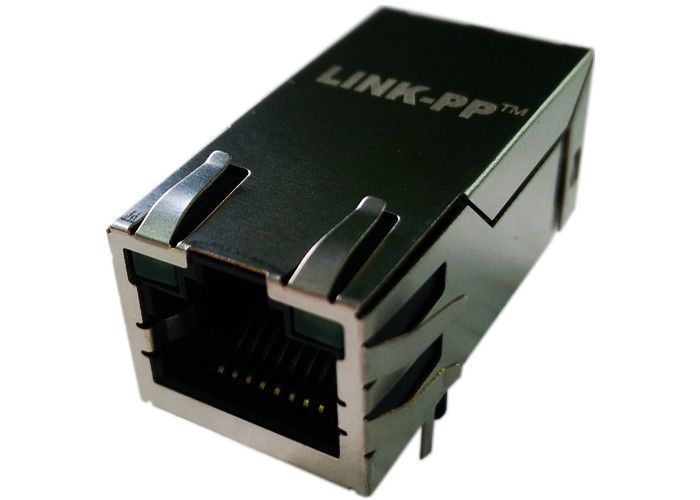

Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: HY911180AE
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000
Price: Supportive
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 4600K.PCS/Month
Specification: |
HY911180AE |
Part No: |
LPJK0071A53NL |
TAB Direction: |
Up |
Turn Ratio: |
1:1 |
Indicator: |
LED Flexible |
Samples: |
Available |
Specification: |
HY911180AE |
Part No: |
LPJK0071A53NL |
TAB Direction: |
Up |
Turn Ratio: |
1:1 |
Indicator: |
LED Flexible |
Samples: |
Available |
Electrical Specifications @25℃
1.OCL(100KHz,0.1V,8mA DC Bias):
350uH min
2.Turns Ratio(±2%):
TX=1CT:1 RX=1CT:1
3.Insertion Loss:
1-100MHz:-1.0dB MAX
4.Return Loss(dB MIN):
1-10MHz:-20 30MHz:-16
60-80MHz:-12 80-100MHz:-10
5.Crosstalk(dB MIN):
1-10MHz:-40 32-65MHz:-35
65-100MHz:-30
6.CMR(dB MIN):
1-125MHz:-30 125-500MHz:-20
7.HI-POT:1500V
8.Operating Temperature: 0～70℃.
