Product Details
Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: ISO9001,SGS,UL,CE,REACH

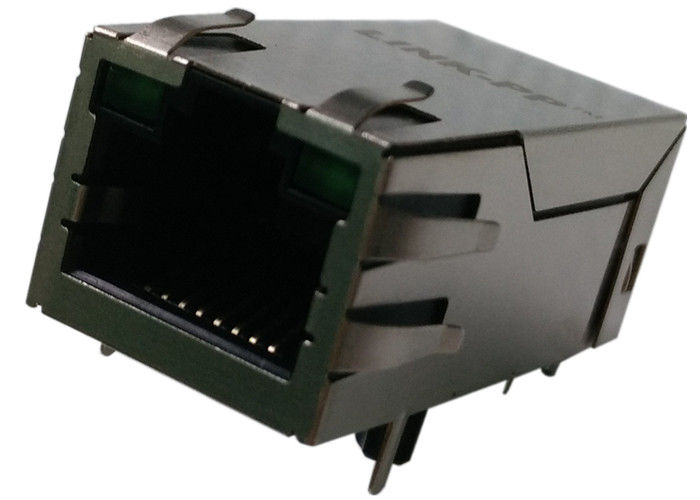

Model Number: HR911196A
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.09-$1.85
Packaging Details: 60PCS/Tray,16Trays=960PCS=37*30*30CM=9 KG/Carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3000000/Month
Specification: |
HR911196A |
Part No: |
LPJK6071A9NL |
Orientation: |
90° Angle (Right) |
Interface: |
POE+ 10/100/1000 Mbps Ethernet |
Indicator: |
LED Flexible |
Samples: |
Available |
Specification: |
HR911196A |
Part No: |
LPJK6071A9NL |
Orientation: |
90° Angle (Right) |
Interface: |
POE+ 10/100/1000 Mbps Ethernet |
Indicator: |
LED Flexible |
Samples: |
Available |
Electrical Specifications @25℃
IMPEDANCE: 100 OHMS
1.Turns Ratio(±2%):
TX=1CT∶1CT RX=1CT∶1CT
2.Inductance OCL: 350uH min
@100KHz,0.1Vrms,8mADC Bias
3.Insertion Loss:
0.5-100MHz:-1.1dB Max
4.Return Loss(dB Min):
1-30MHz:-18; 40MHz:-16
50MHz:-14; 60-80MHz:-12
5.Crosstalk(dB Min):
0.3-80MHz:-30
6.Common Mode Rejection Ratio(CMRR):
0.5-100MHz:-30dB Min
7.Isolation Voltage: 1500Vrms
8.PoE current 350mADC MAX
9.Rectifier Diode Spec:
Forward Voltage, VF=1.0V Max @ If=1A
Forward Current, If=1A
Reverse Voltage, VR=80V Max
1.LEDS WITH BUILT-IN RESISTOR
2.LEDS ARE DRIVEN WITH 5V VOLTAGE AND THE MAX
OPERATING CURRENT IS 20mA.
3.LED COLOR:
DOMINANT WAVELENGTH(λD): GREEN 568 nm TYP @ VF=5V
FORWARO CURRENT(IF): GREEN 12mA TYP @ VF=5V
DOMINANT WAVELENGTH(λD): YELLOW 588 nm TYP @ VF=5V
FORWARO CURRENT(IF): YELLOW 13mA TYP @ VF=5V
10.Operating Temperature: -40℃～+85℃.
|
|
