Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO

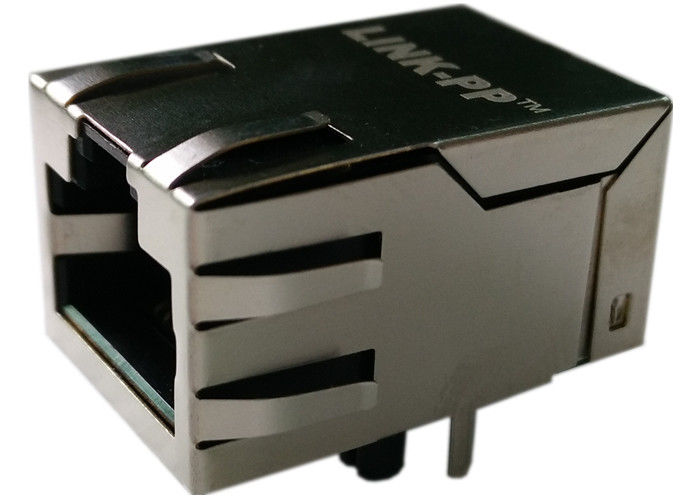

Model Number: P62-PCZ-12W9
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000
Price: Supportive
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 4600K.PCS/Month
Specification: |
P62-PCZ-12W9 |
Part No: |
LPJ1150CNL |
TAB Direction: |
Up |
Turn Ratio: |
1:1 |
Indicator: |
LED Flexible |
Samples: |
Available |
Specification: |
P62-PCZ-12W9 |
Part No: |
LPJ1150CNL |
TAB Direction: |
Up |
Turn Ratio: |
1:1 |
Indicator: |
LED Flexible |
Samples: |
Available |
ELECTRICAL SPECFICATIONS @25℃
1.Turn Ratio(±2%):
TX=1CT∶1CT RX=1CT∶1CT
2.Inductance OCL: 350uH MIN
@100KHz 0.1V 8mA DC Bias
3.Insertion Loss:
-1.0dB MAX @ 1-100MHz
4.Return Loss(@100Ω):
-18dB MIN @ 1-30MHz
-16dB MIN @ 30-60MHz
-12dB MIN @ 60-80MHz
5.Cross talk:
-35dB MIN @ 1-100MHz
6.Common Mode Rejection:
-30dB MIN @ 1-100MHz
7.Hipot Test: 1500VAC 3Sec
8.Operating Temperature Range: 0℃ TO 70℃
|
|
