LPJD0101DNL Rj45 Cross RV1-1000G72A POE Connector Top Entry 10/100 Magnetics

Name: LPJD0101DNL Rj45 Cross RV1-1000G72A POE Connector Top Entry 10/100 Magnetics
Brand: LINK-PP
SKU: RV1-1000G72A
Price: 0.09 USD
Availability: InStock
Rating: 4.9 (128 reviews)

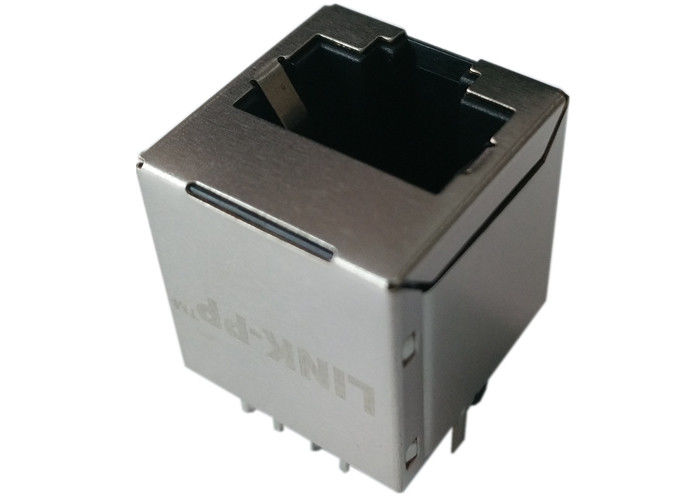

Large Image : LPJD0101DNL Rj45 Cross RV1-1000G72A POE Connector Top Entry 10/100 Magnetics

Product Details:

Place of Origin:	GuangDong, China
Brand Name:	LINK-PP
Certification:	ISO9001,SGS,UL,CE,REACH
Model Number:	RV1-1000G72A

Payment & Shipping Terms:

Minimum Order Quantity:	50/500/1000/25K
Price:	$0.09-$1.85
Packaging Details:	60PCS/Tray,22Trays=373030cm=10KGS=1320pcs/Carton
Delivery Time:	Stock
Payment Terms:	TT,NET30/60/90 Days
Supply Ability:	3000000/Month

Contact Now

Detailed Product Description

Specification:	RV1-1000G72A	Part Number:	LPJD0101DNL
Munafactuer:	LINK-PP	Ethernet:	10/100Mbps Power Ethernet
Mounting:	Vertical 180 Degree Shield	Samples:	Available
Highlight:	poe rj45 pinout , rj45 power over ethernet

LPJD0101DNL Rj45 Cross RV1-1000G72A POE Connector Top Entry 10/100 Magnetics

LINK-PP Equivalent to Rj45 RV1-1000G72A
Power Over Ethernet Rj45 Magnetics Module
IEEE 802.3af PoE 350mA
1x10/100Mbps Ethernet
Vertical Mount Rj45 Jack
Top Entry Rj45 With LED / Without LED
LPJD0101DNL # 0℃～70℃.
LPJD4101DNL# -40℃～85℃.

Vertical Mount ,180 degree POE Rj45
Electrical Specifications @25℃ 1.Turns Ratio: TX=1:1 RX=1:1 2.Inductance(100KHz,100mV,8mA,DC Bias): 350uH min 3.Insertion Loss: 1～100MHz:-1.0dB max 4.Return Loss(dB min. load 100Ω): 1～30MHz:-18 30～60MHz:-16 60～80MHz:-12 5.Crosstalk: 1～100MHz:-30dB min 6.common mode rejection: 1～100MHz:-30dB min 7.Hi-pot: 1200V,60 Sec 8.Operating Temperature: 0℃～70℃.
