Product Details
Place of Origin: Made In China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO

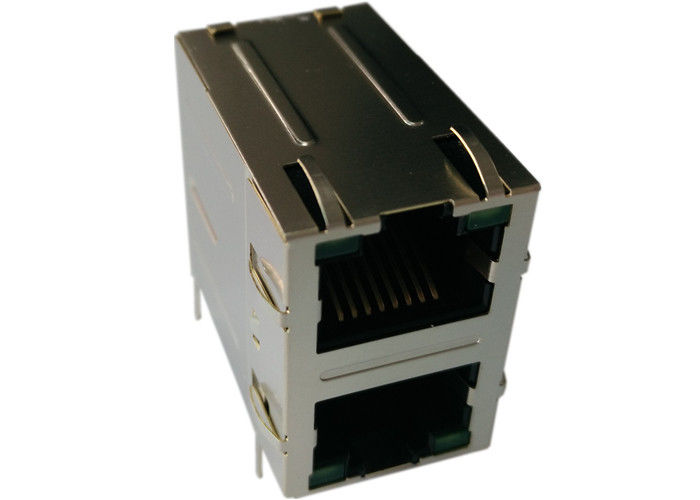

Model Number: MIC24A10-010W-LF3
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/60K
Price: $0.11-$24
Packaging Details: Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 180K/Month
Specification: |
MIC24A10-010W-LF3 |
Part No: |
LPJ17202CNL |
Application: |
Industry Switch, Router ,Gateway... |
Ethernet: |
2x10/100 Mbps |
Indicator: |
LED Flexible |
Samples: |
Available |
Specification: |
MIC24A10-010W-LF3 |
Part No: |
LPJ17202CNL |
Application: |
Industry Switch, Router ,Gateway... |
Ethernet: |
2x10/100 Mbps |
Indicator: |
LED Flexible |
Samples: |
Available |
Electrical Specifications @25℃
1.Turns Ratio(%%P3%):
TX=1CT:1CT RX=1CT:1CT
2.Inductance: 350uH MIN
@100KHz,0.1V,8mA DC BIAS
3.Insertion Loss:
1-65MHz: -1.0dB MAX
4.Return Loss(100Ω%%P15Ω):
1-10MHz: -20dB MIN
10-30MHz: -16dB MIN
30-60MHz: -12dB MIN
60-80MHz: -12dB MIN
5.Crosstalk:
1-30MHz: -40dB MIN
30-60MHz: -35dB MIN
60-100MHz: -30dB MIN
6.Common Mode Rejection:
1-50MHz: -30dB MIN
50-150MHz: -20dB MIN
7.Hipot: 1500Vrms
8.Operating Temperature: 0℃～70℃.
|
|
