Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO

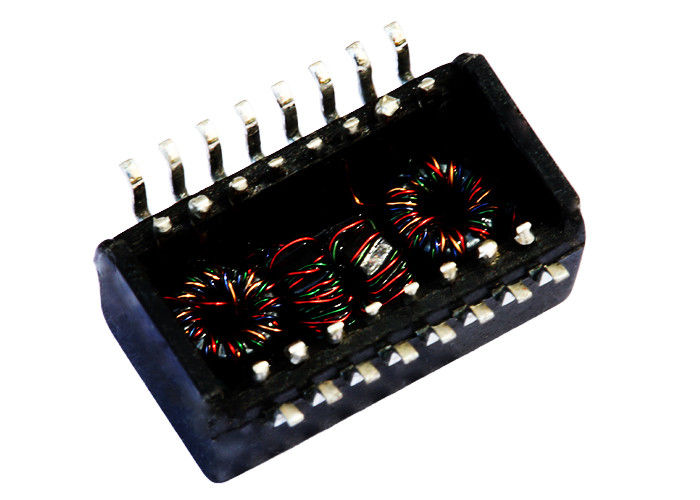

Model Number: HN8019CG
Payment & Shipping Terms
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.06-$3.2
Packaging Details: T&R
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
Specification: |
HN8019CG |
Part No: |
LP2019ANL |
Interface: |
10/100Mbps Power |
Family: |
Telecom Transformer |
Pins: |
16Pins |
Samples: |
Free Available |
Archivi Disponibili: |
PDF/3D/ISG/Stp/Step/Datasheet |
Specification: |
HN8019CG |
Part No: |
LP2019ANL |
Interface: |
10/100Mbps Power |
Family: |
Telecom Transformer |
Pins: |
16Pins |
Samples: |
Free Available |
Archivi Disponibili: |
PDF/3D/ISG/Stp/Step/Datasheet |
Electrical Specification @25℃
1.Turns Ratio:
TX=1CT:1CT RX=1CT:1CT
2.Insertion Loss:
0.1-100MHz:-1.0dB MAX
3.Return Loss:
0.1-30MHz:-18dB MIN
30-60MHz: -13dB MIN
60-80MHz:-12dB MIN
4.Crosstalk:
0.1-100MHz:-35dB MIN
5.DCMR:
30MHz:-42dB MIN
60MHz:-36dB MIN
100MHz:-33dB MIN
6.CMRR:
1-100MHz: -40dB TYP
7.L: 1-3,6-8:
350uH MIN 100KHz 0.1V 8mADC
8.DCR: 1-3,6-8: 0.9 OHM MAX
9.LK:
1-3(Tie:16+14):0.5uH MAX 100KHz 0.1V
6-8(Tie:11+9): 0.5uH MAX 100KHz 0.1V
10.Cw/w:
(1-3),(16-14):28pF MAX 100KHz 0.1V
(6-8),(11-9): 28pF MAX 100KHz 0.1V
11.Isolation Voltage: 1500Vrms
12.Operating Temperature: -40℃～+85℃.
NOTES:
1.Designed to support application,such as SOHO(ADSL
modems),LAN-on-Motherboard(LOM),hub and Switches.
2.Power over Ethernet (PoE) Magnetics
3.PoE applications current capability: 350mA.
4.With various Turns Ratios.
5.RoHS "NL" peak solder rating 255± 5℃.
