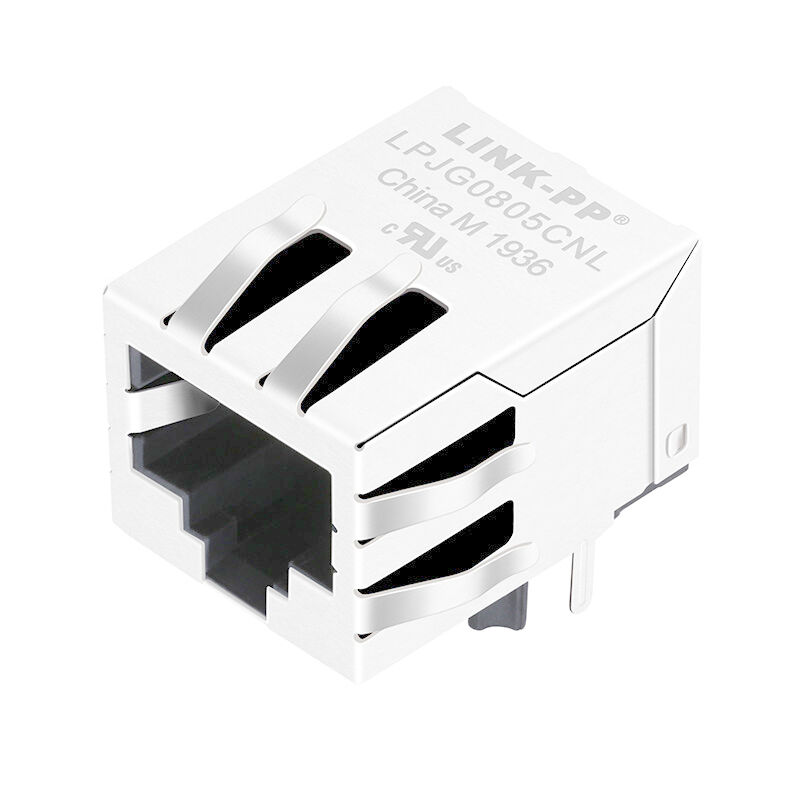

1000Base-T Magnetic Rj45 HFJ11-1G02ERL / LPJG0805CNL For Gigabit Ethernet

Name: 1000Base-T Magnetic Rj45 HFJ11-1G02ERL / LPJG0805CNL For Gigabit Ethernet
Brand: LINK-PP
SKU: HFJ11-1G02ERL
Rating: 4.5 (133 reviews)

Product Details

Place of Origin: China

Brand Name: LINK-PP

Certification: UL,ROHS,Reach,ISO

Model Number: HFJ11-1G02ERL

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000

Price: Supportive

Packaging Details: 50pcs/tray,1200pcs/carton

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 4600K.PCS/Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                stacked rj45 connectors, rj45 with magnetics


Specification:	HFJ11-1G02ERL	Part No:	LPJG0805CNL
Ethernet:	1x10/100/1000 Mbps	Indicator:	None LEDs
Mounting:	R/A Shield	Samples:	Available Free

Specification:	HFJ11-1G02ERL
Part No:	LPJG0805CNL
Ethernet:	1x10/100/1000 Mbps
Indicator:	None LEDs
Mounting:	R/A Shield
Samples:	Available Free

1000Base-T Magnetic Rj45 HFJ11-1G02ERL / LPJG0805CNL For Gigabit Ethernet

FastJack with 1000Base-T Magnetics Rj45 Modular jack
Telecom transformers and RJ45 modules Jack
LPJG0805CNL LINK-PP Cross HFJ11-1G02ERL Equivalent
IEEE 802.3 10/100/1000BASE-T Magnetic RJ45 Jack
Rj45 Right Angle PCB Connector Without LED Indicators
LPJG0805CNL: 0℃～70℃
LPJG4805CNL : -40℃～85℃

ELECTRICAL SPECFICATIONS @25℃
1.Turn Ratio(±2%):
TX=1CT:1CT RX=1CT:1CT
2.Inductance OCL:
350uH MIN @100KHz/0.1V,8mA DC Bias
3.Insertion Loss:
-1.1dB MAX @ 0.1-100MHz
4.Return Loss:
-18dB MIN @ 1-40MHz
-14.5dB MIN @ 60MHz
-12dB MIN @ 80MHz
-10dB MIN @ 100MHz
5.Cross talk:
-40dB MIN @ 1-30MHz
-35dB MIN @ 30-60MHz
-30dB MIN @ 60-100MHz
6.Common Mode Rejection:
-40dB TYP @ 0.1-100MHz
7.Hipot Test:1500Vrms
8.Operating Temperature: 0℃ TO 70℃.

1000Base-T Magnetic Rj45 HFJ11-1G02ERL / LPJG0805CNL For Gigabit Ethernet 0
