Surface Mounting Magnetic J0C-0005NL / LPJ19111DNL Rj45 1x1 10/100Base-TX

Name: Surface Mounting Magnetic J0C-0005NL / LPJ19111DNL Rj45 1x1 10/100Base-TX
Brand: LINK-PP INT'L TECHNOLOGY CO., LIMITED
SKU: J0C-0005NL
Price: 372.50 USD
Availability: InStock

Product Details

Place of Origin: GuangDong, China

Brand Name: LINK-PP

Certification: ISO9001,SGS,UL,CE,REACH,RoHS

Model Number: J0C-0005NL

Payment & Shipping Terms

Minimum Order Quantity: 720pcs

Price: Negotiable & Discount

Packaging Details: 120pcs/reel, 6Reel = 35*35*35cm = 9KGS(720pcs)/Carton

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 3000000/Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                    J0C-0005NL, SMT RJ45 1x1, J0C-0005NL RJ45 SMT


Series:	PulseJack Surface Mount 1x1	Latch:	Down
Speed:	100Base-TX	Indicator:	No LEDs
Package:	SMT	Free Samples:	Available

Series:	PulseJack Surface Mount 1x1
Latch:	Down
Speed:	100Base-TX
Indicator:	No LEDs
Package:	SMT
Free Samples:	Available

Surface Mounting Magnetic J0C-0005NL / LPJ19111DNL Rj45 1x1 10/100Base-TX

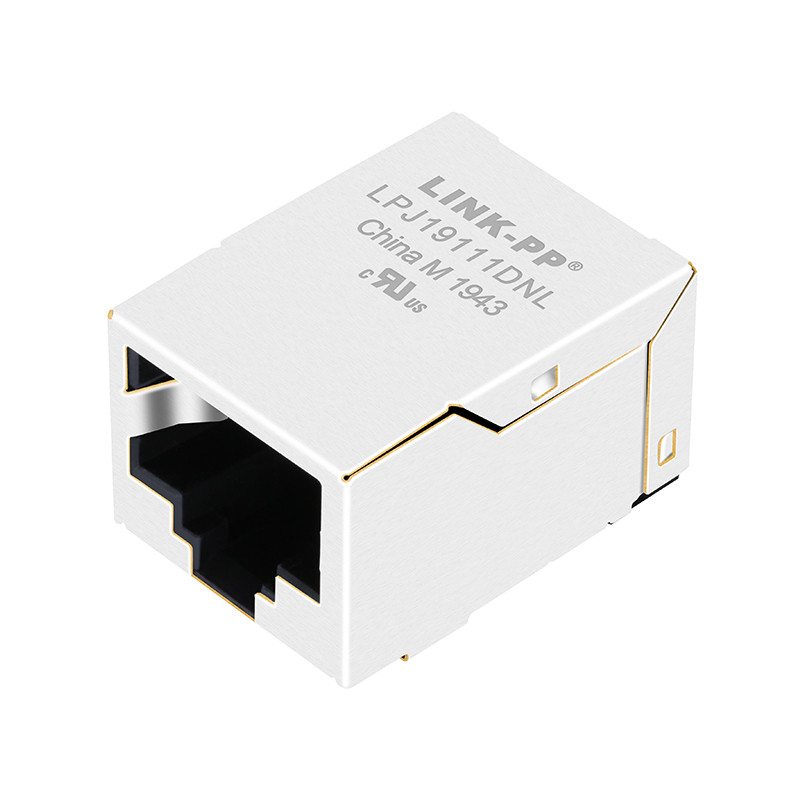

The J0C-0005NL is a 100Base-TX SMT RJ45 Connector featuring a single port with tab-down orientation.
It is designed without LEDs and includes integrated magnetics for enhanced signal integrity.
The connector has gold plating (15 µ'') in the contact mating area, ensuring reliable and durable connections.
It operates within a temperature range of 0 to 70°C.
The package dimensions are 14.376 mm in height, 21.590 mm in length, and 16.256 mm in width.
With a side entry PCB mount angle.
RoHS compliant.
They are designed to support applications such as Set Top Box and Network Interface Cards (NIC).
LINK-PP LPJ19111DNL 100% Cross Pulse J0C-0005NL Specifications.

Electrical Specification @25℃

1. Turns Ratio(±2%):
TX=1CT:1CT RX=1CT:1CT
2. OCL: 350uH Min
@100KHz,100mV,8mADC
3. Insertion Loss:
1-100MHz:-1.0dB Max
4. Return Loss(dB Min,@100Ω):
1-10MHz:-18 30MHz:-14
60-80MHz:-10
5. Crosstalk(dB Mim):
1-60MHz:-35 60-100MHz:-30
6. Common Mode Rejection:
1-130MHz:-20dB Min
7. Hipot: 1500Vrms
8. Operating Temperature: 0℃～70℃.
