Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: JX0026D21NL
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.05-$1.28
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 4200K-PCS/Month
Specification: |
JX0026D21NL |
Part No: |

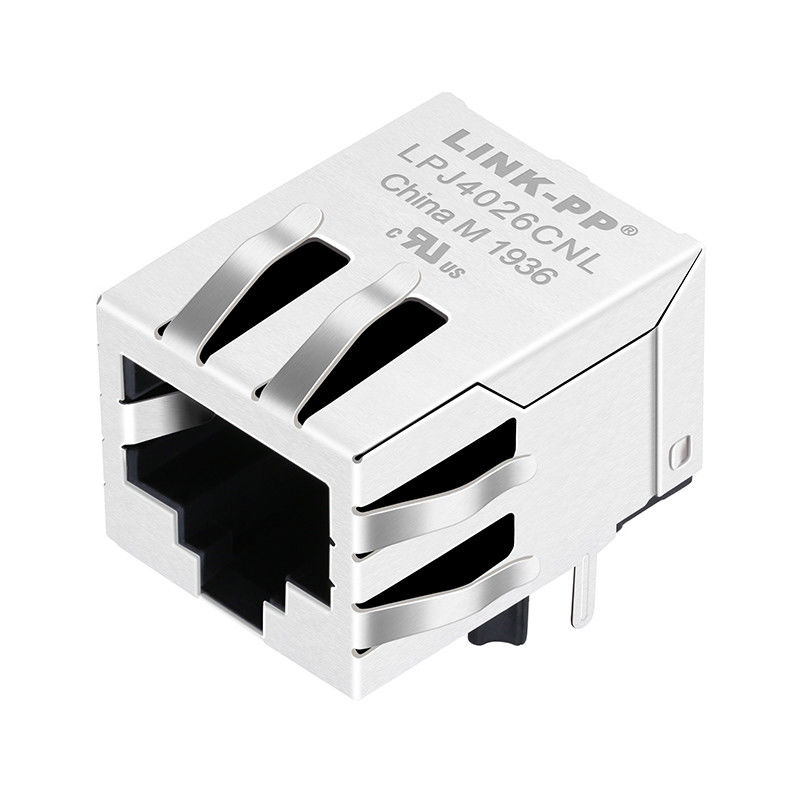

LPJ4026CNL |
Ethernet: |
1x10/100Mbps |
Mounting: |
Right Angle |
Indicators: |
Without LEDs |
Samples: |
Available |
Specification: |
JX0026D21NL |
Part No: |
LPJ4026CNL |
Ethernet: |
1x10/100Mbps |
Mounting: |
Right Angle |
Indicators: |
Without LEDs |
Samples: |
Available |
ELECTRICAL SPECFICATIONS @25℃
1.Turn Ratio(±2%):
TX=1CT:1 RX=1CT:1CT
2.Inductance OCL: 350uH MIN
@ 100KHz,0.1V,8mA DC Bias
3.Insertion Loss:
-1.0dB MAX @ 1-65MHz
4.Return Loss:
-20dB MIN @ 1-10MHz
-16dB MIN @ 10-30MHz
-12dB MIN @ 30-60MHz
-10dB MIN @ 60-100MHz
5.Cross talk:
-40dB MIN @ 1-30MHz
-35dB MIN @ 30-60MHz
-30dB MIN @ 60-100MHz
6.Common Mode Rejection:
-30dB MIN @ 1-50MHz
-20dB MIN @ 50-150MHz
7.Hipot Test: 1500Vrms MIN
8.Operating Temperature Range: -40℃ TO +85℃.
|
|
