Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO

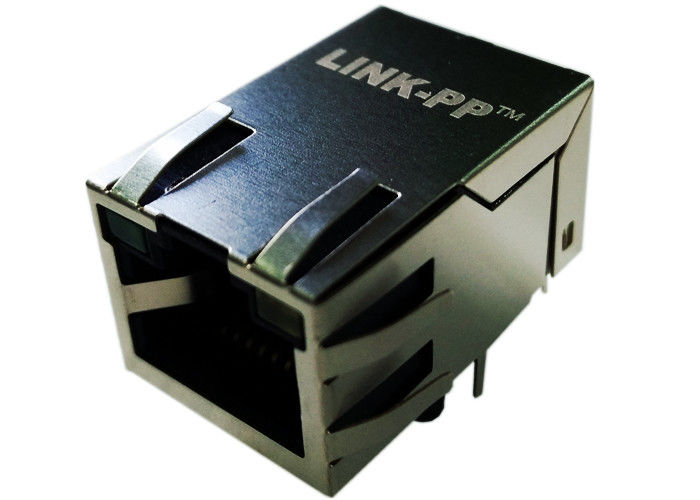

Model Number: J1012F21KNL
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.09-$1.85
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 250000-320000/Month
Specification: |
J1012F21KNL |
Part No: |
LPJ1012AWNL |
Ethernet: |
1x 10/100Mbps |
Mounting: |
Right Angle |
Indicators: |
LEDs |
Samples: |
Available |
Specification: |
J1012F21KNL |
Part No: |
LPJ1012AWNL |
Ethernet: |
1x 10/100Mbps |
Mounting: |
Right Angle |
Indicators: |
LEDs |
Samples: |
Available |
Electrical Specification @25℃
1.Turns Ratio(±2%):
TX=1CT∶1CT RX=1CT∶1CT
2.OCL: 350uH Min
@100KHz 0.1V 8mADC BIAS
3.Insertion Loss:
1-65MHz:-1.0dB Max
4.Return Loss(dB Min):
1-10MHz:-20 10-30MHz:-16
30-60MHz:-12 60-100MHz:-10
5.Crosstalk(dB Min):
1-30MHz:-40 30-60MHz:-35
60-100MHz:-30
6.CMR(dB Min):
1-50MHz:-30 50-150MHz:-20
7.Isolation Voltage: 1500Vrms
8.Operating Temperature: 0℃～70℃.
|
|
