JX0C-0005NL Surface Mount Rj45 Magnetics Connectors, Latch-down 10/100Mbps

Good quality Magnetic RJ45 Jack for sales
Good quality Magnetic RJ45 Jack for sales
WOW , 100% Tested ,Zero Defective

—— TI

LINK-PP is Our Best Supplier in China

—— Intel

Thanks a Lot For Supplying Excellent RJ45 And Transformer ,LINK-PP Deserve the Consideration Worldwidely

—— Cisco

LINK-PP is Flex type A Vendor For All RJ45 Connector and Transformer

—— Flextronics

I'm Online Chat Now

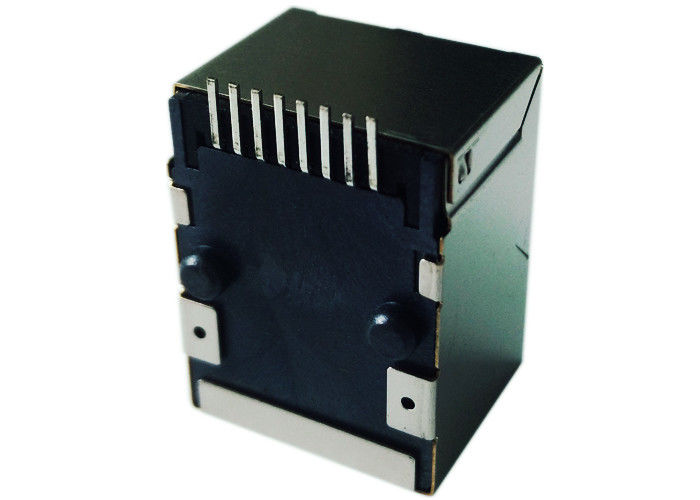

JX0C-0005NL Surface Mount Rj45 Magnetics Connectors, Latch-down 10/100Mbps

China JX0C-0005NL Surface Mount Rj45 Magnetics Connectors, Latch-down 10/100Mbps supplier
JX0C-0005NL Surface Mount Rj45 Magnetics Connectors, Latch-down 10/100Mbps supplier JX0C-0005NL Surface Mount Rj45 Magnetics Connectors, Latch-down 10/100Mbps supplier

Large Image :  JX0C-0005NL Surface Mount Rj45 Magnetics Connectors, Latch-down 10/100Mbps

Product Details:

Place of Origin: China
Brand Name: LINK-PP
Certification: ISO9001,SGS,REACH,UL,RoHS
Model Number: JX0C-0005NL

Payment & Shipping Terms:

Minimum Order Quantity: 720
Price: Supportive
Packaging Details: 120pcs/reel,6Reel=35*35*35cm=9KGS(720pcs)/Carton
Delivery Time: Stock 4 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 6000K/month
Contact Now
Detailed Product Description
Specification: JX0C-0005NL Part No: LPJ19411DNL
Ethernet: 1x 10/100Mbps Mounting: 180 Degree
Indicators: None LEDs Samples: Available

JX0C-0005NL Surface Mount Rj45 Magnetics Connectors, Latch-down 10/100Mbps

  1. LINK-PP SMD Rj45 Jack LPJ19411DNL For 10/100Mbps Ethernet
  2. Cross Equivalent Pulse Jack JX0C-0005NL Surface Mount Rj45
  3. Internal magnetics: 100% electrically tested for Hipot and functionality
  4. Meets IEEE 802.3 specification
  5. 350 µH minimum OCL with 8mA bias current
JX0C-0005NL Surface Mount Rj45 Magnetics Connectors, Latch-down 10/100Mbps JX0C-0005NL Surface Mount Rj45 Magnetics Connectors, Latch-down 10/100Mbps

Electrical Specification @25℃
1.Turns Ratio(±2%):
TX=1CT:1CT RX=1CT:1CT
2.OCL: 350uH Min
@100KHz,0.1V,8mA DC Bias
3.Insertion Loss:
1~100MHz:-1.0dB Max
4.Return Loss(dB Min):
1~30MHz:-16 30~60MHz:-12
60~80MHz:-10
5.Crosstalk(dB Min):
1~30MHz:-40 30~60MHz:-35
60~100MHz:-30
6.CMR(dB Min):
1~50MHz:-40 50~150MHz:-30
7.Hipot: 1500V AC 6S 1mA
8.Operating Temperature: -40℃~+85℃.



Test Description SPEC 1 2 3 4 5 TEST FREQ.
TX RX TX RX TX RX TX RX TX RX
OCL 350uH MIN 575 570 563 561 580 578 612 609 588 576 100KHz 0.1V 8mA
Turn Ratio(±2%) TX 1CT:1CT OK OK OK OK OK OK OK OK OK OK ---
RX 1CT:1CT
Insertion Loss -1.0dB MAX -0.23 -0.22 -0.21 -0.20 -0.28 -0.22 -0.23 -0.24 -0.27 -0.22 1-65MHz
Return Loss -18dB MIN -35.5 -33.1 -36.7 -37.6 -31.5 -30.4 -34.3 -31.1 -36.2 -33.6 1-10MHz
-14dB MIN -28.2 -27.8 -29.2 -28.8 -28.5 -29.3 -28.8 -27.6 -26.9 -27.5 30MHz
-10dB MIN -15.7 -14.9 -14.5 -14.1 -13.8 -14.7 -15.2 -14.5 -16.2 -14.8 60-100MHz
Crosstalk -35dB MIN -42.4 -40.7 -38.1 -40.4 -38.6 1-60MHz
-30dB MIN -36.4 -34.0 -33.6 -37.1 -33.9 60-100MHz
Common Mode Rejection -20dB MIN -38.1 -35.6 -39.5 -37.1 -37.1 -33.7 -36.7 -38.3 -33.6 -35.8 1-130MHz
Hipot Isolation 1500Vrms MIN OK OK OK OK OK OK OK OK OK OK PRI TO SEC
